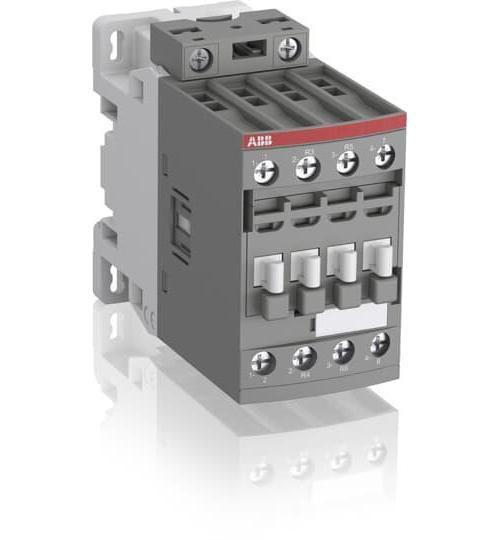

ABB AF38-22-00-12 AC/DC Operated IEC Contactor, 48 to 130 V AC/DC V Coil, 55 A, 2NO-2NC Contact, 4 Poles
ABB AF38-22-00-12 AC/DC Operated IEC Contactor, 48 to 130 V AC/DC V Coil, 55 A, 2NO-2NC Contact, 4 Poles
SKU: ABBAF38-22-00-12
Manufacturer Part Number: AF38-22-00-12
UPC: 804325561693
Documents
Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- 5.5 kW at 220 to 230 to 240 V, 11 kW at 380 to 400/415/440/500 V, 9 kW at 690 V
- 55 A at 600 V UL/CSA, 1-phase 690 V IEC
Specification
| Terminal Type | Screw |
|---|---|
| Operating Cycles | 10000000 Cycles |
| Coil Voltage | 48 to 130 V AC/DC |
| Frequency Rating | 50/60 Hz |
| Type | AC/DC Operated |
| Dimensions | 86 mm H x 45 mm W x 101 mm D |
| Connection Type | Double Connector |
| Maximum Load Current | 55 A |
| Operating Temperature | -40 to 70 deg C |
| Coil Power Rating | 5.5/9/11 kW |
| Number Of Poles | 4 |
| Contact Configuration | 2NO-2NC |
| Enclosure Type | IP20 |
