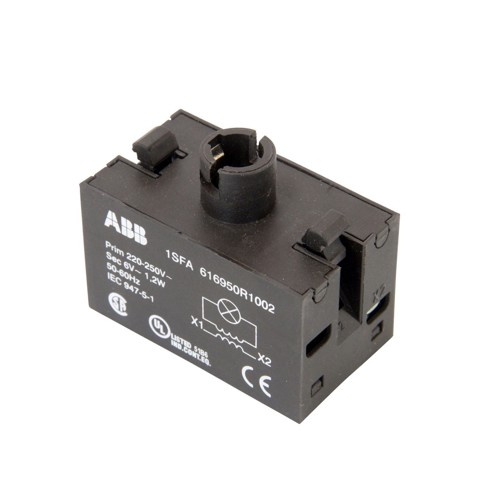

ABB KTR1-1002 Transformer Block, 1.5 W Power Rating, 220 to 250 VAC Primary, 6 VAC Secondary, IP20 Enclosure

Selected KTR1-1002ABB KTR1-1002 Transformer Block, 1.5 W Power Rating, 220 to 250 VAC Primary, 6 VAC Secondary, IP20 Enclosure
KTR1-1002ABB KTR1-1002 Transformer Block, 1.5 W Power Rating, 220 to 250 VAC Primary, 6 VAC Secondary, IP20 Enclosure

Features

  • Can take a 6 or 24 V filament bulb or 24 V LED
  • Maximum 1.2 W filament bulb
  • Lamp block included in the transformer, BA9s base

Specification

Mounting Type
Front
Minimum Order Qty
1
Order Interval
1
Enclosure Type
IP20
Power Rating
1.5 W
Dimensions
0.035 m L x 0.05 m W x 0.03 m H
Catalog ID
ABBKTR1-1002
Insulation Type
Class E
Application
For 30 mm modular pilot lights and modular range illuminated operators
Secondary Voltage
6 VAC
Primary Voltage
220 to 250 VAC
