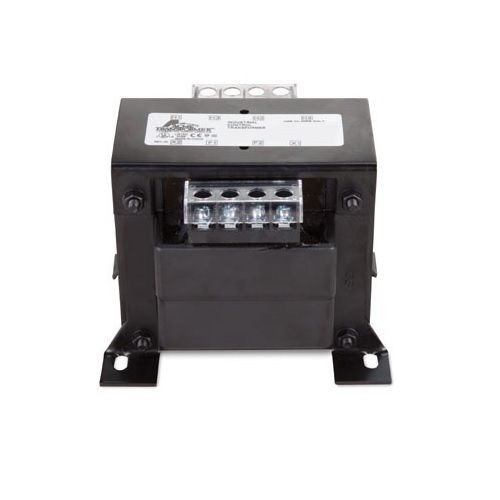

Acme Electric® Legacy™ AE060500 AE Series Industrial Control Transformer, 220/440/230/460/240/480 VAC Primary, 110/115/120 VAC Secondary, 500 VA Power Rating, 50/60 Hz, 1 ph Phase
Acme Electric® Legacy™ AE060500 AE Series Industrial Control Transformer, 220/440/230/460/240/480 VAC Primary, 110/115/120 VAC Secondary, 500 VA Power Rating, 50/60 Hz, 1 ph Phase
SKU: ACMAE060500
Manufacturer Part Number: AE060500
UPC: 047503085875
Short Description
Features
- Epoxy encapsulated design protects core and coil assembly from potentially damaging contaminants
- Integrally molded terminal blocks with isolation barriers to prevent arc over, terminal blocks allow full access for ring terminals for easy installation and solid termination
- Heavy gauge steel mounting feet
- Available factory or field installed fuse blocks provide integral fusing on the primary or primary and secondary
- Dual labeling for easy product identification when equipped with a fuse block
- 0.31 x 0.69 in mounting slot
- Encapsulated core and coil
- These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage
- Transformer enclosure temperature shall not exceed 65 deg C plus the ambient
- Transformer shall incorporate an electrostatic shield for the attenuation of voltage spikes, line noise and transients
- Transformer coils are typically wound with aluminum or copper for increased insulation life, cooler operation and lower losses
- The AE and CE series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation
- In addition, the AE and CE series industrial control transformers seal the transformer's windings and internal terminations within an epoxy encapsulated encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants
- 240 x 480, 230 x 460, 220 x 440 VAC primary voltage
- 120/115/110 VAC secondary voltage
- Furthermore, acme compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Housing Material | Steel |
| Mounting Type | Panel |
| Phase | 1 |
| Type | Industrial |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, OSHA Approved, cUL Listed, CSA Certified, IEEE Certified, ANSI Specified |
| Enclosure Type | NEMA 3R |
| Connection Type | Lead Wire/Screw |
| Dimensions | 5.53 in L x 5.25 in W x 4.66 in H |
| Application | For motor starters, contactors, solenoids and timers or other loads applications |
| Temperature Rating | 55 deg C |
| Series | AE Series |
| Secondary Voltage | 110/115/120 V |
| Primary Voltage | 240/480 VAC, 230/460 VAC, 220/440 VAC |
| Power Rating | 500 VA |
| Insulation | Class A/105 deg C |
