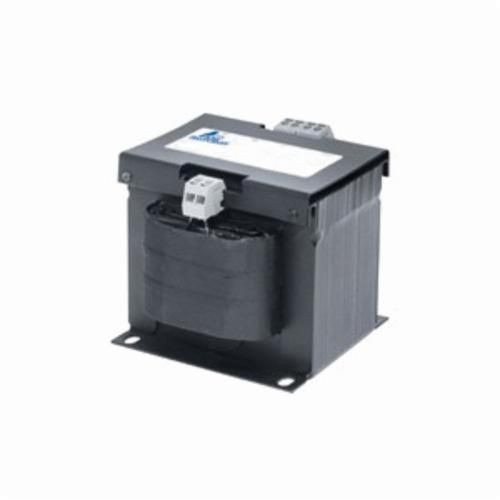

Acme Electric® FINGER/GUARD® FS3150 Industrial Control Transformer, 208/500 VAC Primary, 85/100/110 VAC Secondary, 150 VA Power Rating, 50/60 Hz, 1 Phase

Selected FS3150Acme Electric® FINGER/GUARD® FS3150 Industrial Control Transformer, 208/500 VAC Primary, 85/100/110 VAC Secondary, 150 VA Power Rating, 50/60 Hz, 1 Phase
FS3150Acme Electric® FINGER/GUARD® FS3150 Industrial Control Transformer, 208/500 VAC Primary, 85/100/110 VAC Secondary, 150 VA Power Rating, 50/60 Hz, 1 Phase

Documents

Short Description

The Acme FINGER/GUARD® line of Touch-Protected Industrial Control Transformers offers the most advanced and versatile design concepts available to the marketplace today. They are designed to meet Acme’s rigid standards for mechanical durability as well as surpass Agency and Industry electrical standards. The FINGER/ GUARD® line is designed for all control applications and features integrally installed, durable molded plastic terminations designed to protect against contact with live components. No slip-on plastic covers to be broken, lost or misplaced. All FINGER/GUARD® products use copper windings, high-permeability silicon steel cores and 130 deg C (Class B) insulation.

Features

  • Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
  • Designs incorporate precision wound coils for improved regulation
  • Copper windings on all groups
  • Voltage regulation exceeds NEMA requirements
  • Attractive finish, nameplate, and design features enhance the end product
  • Small and lightweight design
  • Durable molded plastic terminals
  • Easy access front opening in terminal makes for fast wire connections with one screw
  • Open core and coil
  • 240/416/480/600, 230/400/460/575, 220/380/440/550, 208/500 VAC primary volt
  • 99/120/130, 95/115/12, 91/110/120, 85/100/110 VAC secondary volt

Specification

Frequency Rating
50/60 Hz
Insulation
Class B/130 deg C
Mounting Type
Floor
Phase
1
Power Rating
150 VA
Primary Voltage
208/500 VAC
Secondary Voltage
85/100/110 VAC
Temperature Rating
80 deg C
Standard & Approvals
UL 506, file number E79947, CSA C22.2 No 66, CE Marked
Dimensions
4.15 in H x 4.5 in W x 3.31 in D
Connection Type
Screw
Enclosure Type
Open
