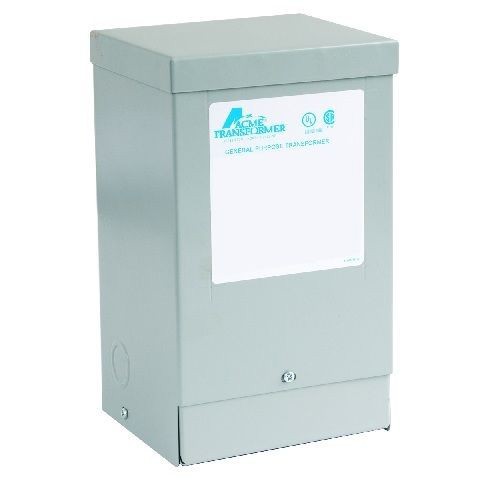

Acme Electric® T111685 Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 20.1 kVA Power Rating, 60 Hz, 1 ph Phase

Selected Acme Electric® T111685 Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 20.1 kVA Power Rating, 60 Hz, 1 ph Phase
Acme Electric® T111685 Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 20.1 kVA Power Rating, 60 Hz, 1 ph Phase

Features

  • Easily configured for numerous applications
  • Lower cost solution
  • 5-10 times increase in kVA
  • Encapsulated core and coil
  • Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20 PCT
  • The most common example is boosting 208 - 230 VAC, usually to operate a 230 VAC motor such as an air-conditioner compressor, from a 208 VAC supply line
  • Buck-boost transformers are an economical way to correct a potentially very serious problem
  • Anytime a line voltage change in the 5 to 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense
  • Single or three phase applications
  • Boost voltage 20.1 kVA/83.3 A 220 VAC line and 242 VAC load
  • Buck voltage 40.8 kVA/175 A 252 VAC line and 240 VAC load
  • 166 A at 12 VAC, 83.2 A at 24 VAC power rating

Specification

Frequency Rating
60 Hz
Housing Material
Steel
Insulation
Class H/180 deg C
Maximum Amperage Rating
166/83.2 A
Mounting Type
Wall
Minimum Order Qty
1
Order Interval
1
Catalog ID
ACMT111685
Connection Type
Wire Lead
Dimensions
5.13 in L x 5.5 in W x 13 in H
Enclosure Type
NEMA 3R
Phase
1
Power Rating
2 kVA
Primary Voltage
120/240 V
Secondary Voltage
12/24 V
Temperature Rating
115 deg C
Type
Encapsulated
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 506, UL File No. E79947V1, UL Control File No. 50B8, UL Insulation File No. X3221, CSA Certified, OSHA Approved, ANSI Specified, IEEE Certified
