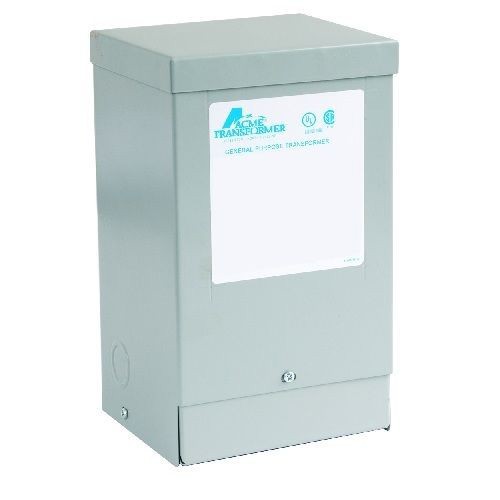

Acme Electric® T113074 Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 16/32 VDC Secondary, 22.5 kVA Power Rating, 60 Hz, 1 ph Phase
Acme Electric® T113074 Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 16/32 VDC Secondary, 22.5 kVA Power Rating, 60 Hz, 1 ph Phase
SKU: ACMT113074
Manufacturer Part Number: T113074
UPC: 047503086469
Features
- Easily configured for numerous applications
- Lower cost solution
- 5-10 times increase in kVA
- Encapsulated core and coil
- Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20 PCT
- The most common example is boosting 208 - 230 VAC, usually to operate a 230 VAC motor such as an air-conditioner compressor, from a 208 VAC supply line
- Buck-boost transformers are an economical way to correct a potentially very serious problem
- Anytime a line voltage change in the 5 to 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense
- Single or three phase applications
- Boost voltage 22.5 kVA/93.8 A 225 VAC line and 240 VAC load
- Buck voltage 23.9 kVA/100 A 255 VAC line and 239 VAC load
- 93.7 A at 16 VAC, 46.9 A at 32 VAC power rating
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Housing Material | Steel |
| Mounting Type | Wall |
| Phase | 1 |
| Power Rating | 1.5 kVA |
| Secondary Voltage | 16/32 V |
| Temperature Rating | 115 deg C |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 506, UL File No. E79947V1, UL Control File No. 50B8, UL Insulation File No. X3221, CSA Certified, OSHA Approved, ANSI Specified, IEEE Certified |
| Enclosure Type | NEMA 3R |
| Application | For low voltage lighting or control circuitry applications |
| Type | Encapsulated |
| Primary Voltage | 120/240 V |
| Maximum Amperage Rating | 93.7/46.9 A |
| Insulation | Class H/180 deg C |
| Connection Type | Lead Wire |
| Dimensions | 5.13 in L x 5.5 in W x 11.62 in H |
