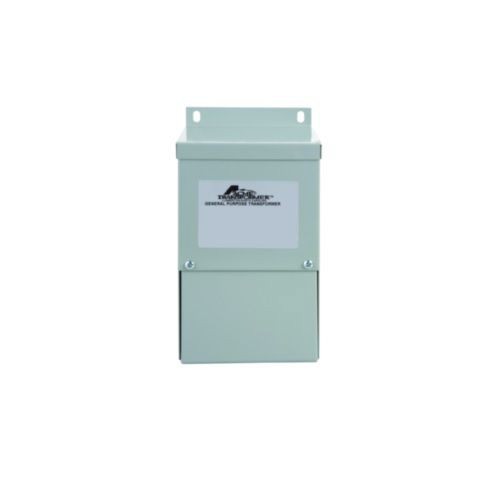

Acme Electric® T181047 Encapsulated Core and Coil Isolation Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 0.5 kVA Power Rating, 50/60 Hz, 1 ph Phase
Acme Electric® T181047 Encapsulated Core and Coil Isolation Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 0.5 kVA Power Rating, 50/60 Hz, 1 ph Phase
SKU: ACMT181047
Manufacturer Part Number: T181047
UPC: 047503085288
Features
- Easily configured for numerous applications
- Lower cost solution
- 5 to 10 times increase in kVA
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Housing Material | Steel |
| Mounting Type | Wall |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Enclosure Type | NEMA 3R |
| Phase | 1 |
| Standard & Approvals | UL 506 File No. E79947V1, CSA C22.2 No. 47, OSHA Approved, ANSI Specified, IEEE Standard |
| Type | Encapsulated Core and Coil Isolation |
| Temperature Rating | 115 deg C |
| Secondary Voltage | 12/24 V |
| Primary Voltage | 120/240 V |
| Power Rating | 0.05 kVA |
| Dimensions | 3.05 in L x 3.14 in W x 6.41 in H |
| Connection Type | Lead Wire |
| Catalog ID | ACMT181047 |
