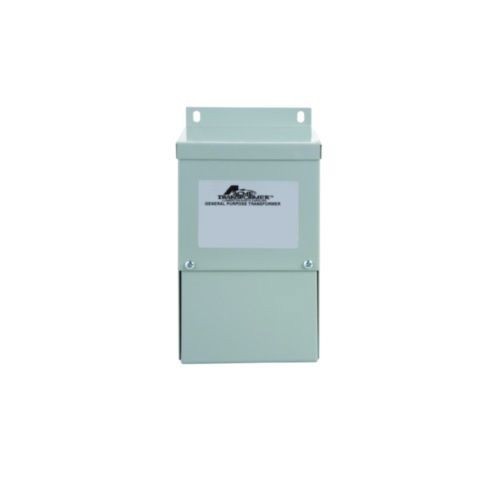

Acme Electric® T181048 Isolation Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 1.01 kVA Power Rating, 50/60 Hz, 1 ph Phase

Selected Acme Electric® T181048 Isolation Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 1.01 kVA Power Rating, 50/60 Hz, 1 ph Phase
Acme Electric® T181048 Isolation Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 1.01 kVA Power Rating, 50/60 Hz, 1 ph Phase

Documents

Features

  • Encapsulated core and coil
  • Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20 PCT
  • The most common example is boosting 208 - 230 VAC, usually to operate a 230 VAC motor such as an air-conditioner compressor, from a 208 VAC supply line
  • Anytime a line voltage change in the 5 to 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense
  • Buck-boost transformers are an economical way to correct a potentially very serious problem
  • 8.32 A at 12 VAC, 4.16 A at 24 VAC power rating

Specification

Mounting Type
Wall
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 506, File No. E79947V1, 50B8, B3223, CSA Certified, OSHA Approved, ANSI Specified, IEEE Certified
Enclosure Type
NEMA 3R
Type
Isolation
Phase
1
Frequency Rating
60 Hz
Application
For low voltage lighting or control circuitry applications
Temperature Rating
115 deg C
Primary Voltage
120/240 V
Insulation
Class B/180 deg C
Maximum Amperage Rating
8.32/4.16 A
Power Rating
0.1 kVA
Secondary Voltage
12/24 V
Dimensions
3.67 in L x 3.89 in W x 7.16 in H
Connection Type
Lead Wire
