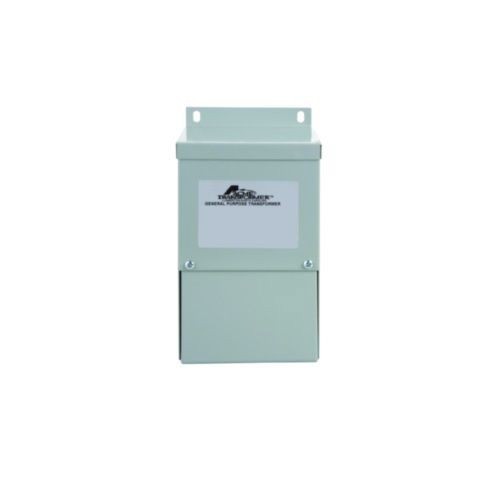

Acme Electric® T181049 Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 1.51 kVA Power Rating, 50/60 Hz, 1 ph Phase

Selected Acme Electric® T181049 Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 1.51 kVA Power Rating, 50/60 Hz, 1 ph Phase
Acme Electric® T181049 Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 1.51 kVA Power Rating, 50/60 Hz, 1 ph Phase

Documents

Features

  • Epoxy encapsulated
  • Wall mounted
  • Easily configured for numerous applications
  • 5 to 10 times increase in kVA
  • Lower cost solution

Specification

Frequency Rating
60 Hz
Phase
1
Standard & Approvals
CSA C22.2 No 47, UL 506
Enclosure Type
NEMA 3R
Primary Voltage
120/240 V
Dimensions
3.67 in L x 3.89 in W x 7.16 in H
Temperature Rating
115 deg C
Secondary Voltage
12/24 V
