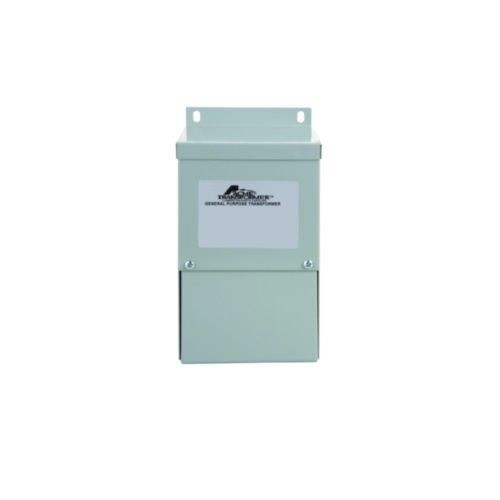

Acme Electric® T181051 Isolation Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 5.04 kVA Power Rating, 50/60 Hz, 1 ph Phase
Acme Electric® T181051 Isolation Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 5.04 kVA Power Rating, 50/60 Hz, 1 ph Phase
SKU: ACMT181051
Manufacturer Part Number: T181051
UPC: 047503084489
Features
- Encapsulated core and coil
- Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20 PCT
- The most common example is boosting 208 - 230 VAC, usually to operate a 230 VAC motor such as an air-conditioner compressor, from a 208 VAC supply line
- Anytime a line voltage change in the 5 to 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense
- Buck-boost transformers are an economical way to correct a potentially very serious problem
- 41.6 A at 12 VAC, 20.8 A at 24 VAC power rating
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Mounting Type | Wall |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Enclosure Type | NEMA 3R |
| Phase | 1 |
| Primary Voltage | 120/240 V |
| Temperature Rating | 115 deg C |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 506, File No. E79947V1, 50B8, B3223, CSA Certified, OSHA Approved, ANSI Specified, IEEE Certified |
| Maximum Amperage Rating | 41.6/20.8 A |
| Application | For low voltage lighting or control circuitry applications |
| Type | Isolation |
| Secondary Voltage | 12/24 V |
| Power Rating | 0.5 kVA |
| Dimensions | 4.2 in L x 4.37 in W x 9.06 in H |
| Catalog ID | ACMT181051 |
| Insulation | Class B/180 deg C |
| Connection Type | Lead Wire |
