Acme Electric® T181055 Isolation Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 16/32 VDC Secondary, 100 VA Power Rating, 50/60 Hz, 1 ph Phase

Selected Acme Electric® T181055 Isolation Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 16/32 VDC Secondary, 100 VA Power Rating, 50/60 Hz, 1 ph Phase

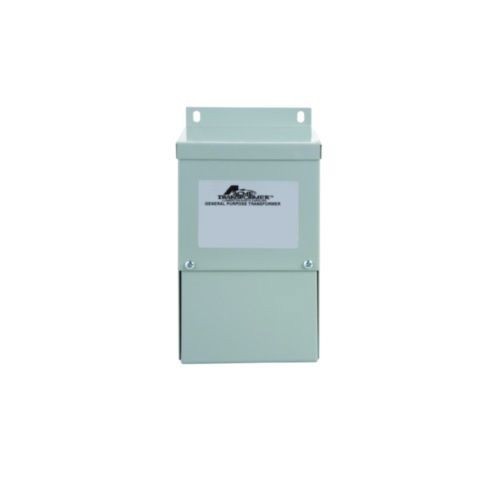

Acme Electric® T181055 Isolation Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 16/32 VDC Secondary, 100 VA Power Rating, 50/60 Hz, 1 ph Phase

Documents

Features

  • Encapsulated core and coil
  • Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20 PCT
  • The most common example is boosting 208 - 230 VAC, usually to operate a 230 VAC motor such as an air-conditioner compressor, from a 208 VAC supply line
  • Anytime a line voltage change in the 5 to 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense
  • Buck-boost transformers are an economical way to correct a potentially very serious problem

Specification

Frequency Rating
60 Hz
Mounting Type
Wall
Phase
1
Temperature Rating
115 deg C
Type
Isolation
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 506, File No. E79947V1, 50B8, B3223, CSA Certified, OSHA Approved, ANSI Specified, IEEE Certified
Dimensions
3.67 in L x 3.89 in W x 7.16 in H
Connection Type
Wire Lead
Secondary Voltage
16/32 V
Primary Voltage
120/240 V
Power Rating
0.1 kVA
Maximum Amperage Rating
6.25/3.12 A
Insulation
Class H/180 deg C
Enclosure Type
NEMA 3R/IP54
