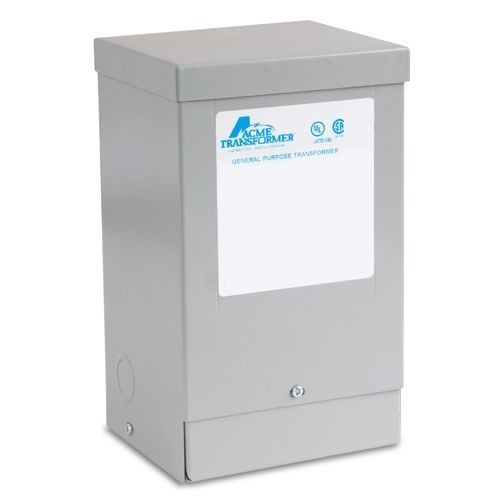

Acme Electric® T213079 Encapsulated Isolation Buck Boost Transformer, 120/240 VAC Primary, 16/32 VDC Secondary, 10 kVA Power Rating, 60 Hz, 1 ph Phase

Pick Up Only
Selected Acme Electric® T213079 Encapsulated Isolation Buck Boost Transformer, 120/240 VAC Primary, 16/32 VDC Secondary, 10 kVA Power Rating, 60 Hz, 1 ph Phase
Acme Electric® T213079 Encapsulated Isolation Buck Boost Transformer, 120/240 VAC Primary, 16/32 VDC Secondary, 10 kVA Power Rating, 60 Hz, 1 ph Phase

Features

  • Powder coated, gray color
  • Easily configured for numerous applications
  • 5-10 times increase in kVA
  • Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT
  • The most common example is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line
  • Buck-boost transformers are an economical way to correct a potentially very serious problem
  • Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense

Specification

Frequency Rating
60 Hz
Housing Material
Steel
Insulation
180 deg C
Maximum Amperage Rating
625/312 A
Mounting Type
Wall
Minimum Order Qty
1
Order Interval
1
Catalog ID
ACMT213079
Connection Type
Wire Lead
Dimensions
11.59 in L x 11.75 in W x 20.81 in H
Enclosure Type
NEMA 3R/IP54
Phase
1
Power Rating
10 kVA
Primary Voltage
120/240 VAC
Secondary Voltage
16/32 VAC
Temperature Rating
115 deg C
Type
Isolation
Standard & Approvals
UL 506, File No. E79947V1, C22.2 No. 47, LR7357-32
