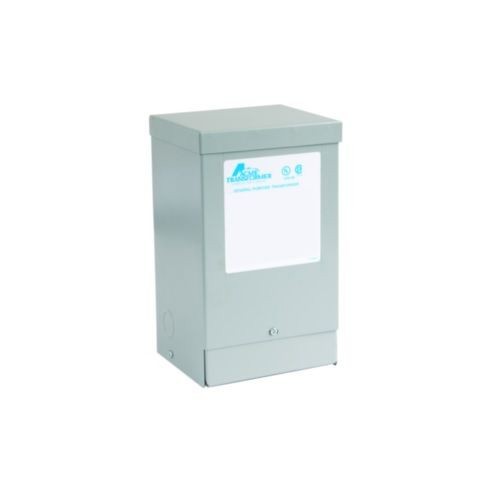

Acme Electric® T253008S Air Colled/Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 0.5 kVA Power Rating, 50/60 Hz, 1 ph Phase

Selected Acme Electric® T253008S Air Colled/Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 0.5 kVA Power Rating, 50/60 Hz, 1 ph Phase
Acme Electric® T253008S Air Colled/Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 0.5 kVA Power Rating, 50/60 Hz, 1 ph Phase

Documents

Short Description

Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.

Features

  • Ground studs for use with non-metallic conduit
  • Quiet operation with sound levels well below NEMA standards
  • Electrostatic shield for enhanced protection
  • Encapsulated core and coil
  • Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air
  • UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration
  • Air cooled/dry cooling
  • Four windings
  • Aluminum, two primary winding, two winding secondary
  • Shielded for cleaner power
  • 3.5 A for 240 VAC, 1.7 A for 480 VAC primary, 7 A for 120 VAC secondary

Specification

Frequency Rating
60 Hz
Mounting Type
Wall
Minimum Order Qty
1
Order Interval
1
Connection Type
Lead Wire
Enclosure Type
NEMA 3R
Phase
1
Power Rating
0.5 kVA
Temperature Rating
115 deg C
Type
Dry
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 506, E79947V1, 50B8, X3221, CSA Certified, OSHA Approved, ANSI Specified, IEEE
Dimensions
4.2 in L x 4.37 in W x 9.06 in H
Catalog ID
ACMT253008S
Maximum Amperage Rating
1.7/3.5/7 A
Insulation
155 deg C
Application
Harsh Industrial Locations, Corrosive Chemical Exposure and Waste Water Treatment Facilities
Secondary Voltage
120/240 V
Primary Voltage
240/480 V
