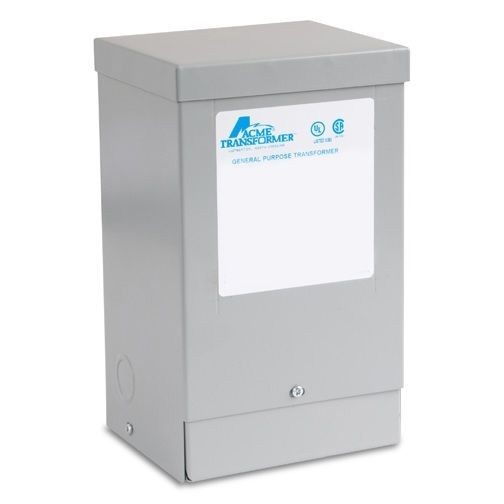

Acme Electric® T253109S Dry Encapsulated Isolation Transformer, 600 VAC Primary, 120/240 VAC Secondary, 750 VA Power Rating, 50/60 Hz, 1 ph Phase
Acme Electric® T253109S Dry Encapsulated Isolation Transformer, 600 VAC Primary, 120/240 VAC Secondary, 750 VA Power Rating, 50/60 Hz, 1 ph Phase
SKU: ACMT253109S
Manufacturer Part Number: T253109S
UPC: 047503732656
Features
- Ground studs for use with non-metallic conduit
- Quiet operation with sound levels well below NEMA standards
- Electrostatic shield for enhanced protection
Specification
| Mounting Type | Wall |
|---|---|
| Enclosure Type | NEMA 3R |
| Phase | 1 |
| Frequency Rating | 60 Hz |
| Secondary Voltage | 120/240 VAC |
| Power Rating | 0.75 kVA |
| Primary Voltage | 600 VAC |
| Temperature Rating | 115 deg C |
| Dimensions | 4.5 in L x 4.75 in W x 9.68 in H |
| Connection Type | Wire Lead Screw |
| Insulation | Class H/155 deg C |
| Standard & Approvals | UL 506 Listed, CSA C22.2 No 47 Certified, Meet CSA C802.2 Efficiency, CE Certified, RoHS Complaint |
