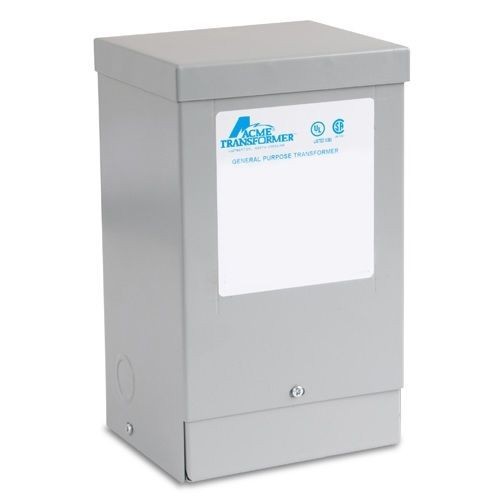

Acme Electric® T253111S Dry Distribution Encapsulated Low Voltage Isolation Transformer, 600 VAC Primary, 120/240 VAC Secondary, 1.5 kVA Power Rating, 60 Hz, 1 ph Phase
Acme Electric® T253111S Dry Distribution Encapsulated Low Voltage Isolation Transformer, 600 VAC Primary, 120/240 VAC Secondary, 1.5 kVA Power Rating, 60 Hz, 1 ph Phase
SKU: ACMT253111S
Manufacturer Part Number: T253111S
UPC: 047503732755
Features
- Ground studs for use with non-metallic conduit
- Quiet operation with sound levels well below NEMA standards
- Electrostatic shield for enhanced protection
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Insulation | Class H/180 deg C |
| Mounting Type | Wall |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | ACMT253111S |
| Connection Type | Wire Lead Screw |
| Dimensions | 5.13 in L x 5.5 in W x 11.62 in H |
| Enclosure Type | NEMA 3R |
| Phase | 1 |
| Power Rating | 1.5 kVA |
| Primary Voltage | 600 VAC |
| Secondary Voltage | 120/240 VAC |
| Temperature Rating | 115 deg C |
| Standard & Approvals | UL 506 Listed, CSA C22.2 No 47 Certified, Meet CSA C802.2 Efficiency, CE Certified, RoHS Complaint |
