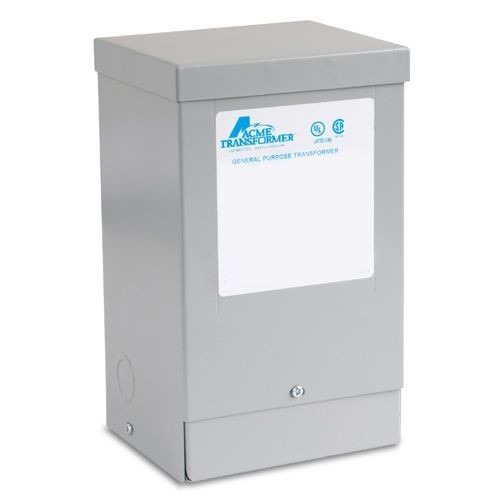

Acme Electric® T2531131S Dry Distribution Encapsulated Low Voltage Isolation Transformer, 600 VAC Primary, 120/240 VAC Secondary, 3 kVA Power Rating, 60 Hz, 1 ph Phase

Pick Up Only
Selected Acme Electric® T2531131S Dry Distribution Encapsulated Low Voltage Isolation Transformer, 600 VAC Primary, 120/240 VAC Secondary, 3 kVA Power Rating, 60 Hz, 1 ph Phase
Acme Electric® T2531131S Dry Distribution Encapsulated Low Voltage Isolation Transformer, 600 VAC Primary, 120/240 VAC Secondary, 3 kVA Power Rating, 60 Hz, 1 ph Phase

Documents

Features

  • Ground studs for use with non-metallic conduit
  • Quiet operation with sound levels well below NEMA standards
  • Electrostatic shield for enhanced protection

Specification

Frequency Rating
60 Hz
Insulation
Class H/180 deg C
Mounting Type
Wall
Minimum Order Qty
1
Order Interval
1
Enclosure Type
NEMA 3R
Phase
1
Secondary Voltage
120/240 VAC
Temperature Rating
115 deg C
Standard & Approvals
UL 506 Listed, CSA C22.2 No 47 Certified, Meet CSA C802.2 Efficiency, CE Certified, RoHS Complaint
Primary Voltage
600 VAC
Power Rating
3 kVA
Dimensions
7.13 in L x 10.31 in W x 11.5 in H
Catalog ID
ACMT2531131S
Connection Type
Wire Lead Screw
