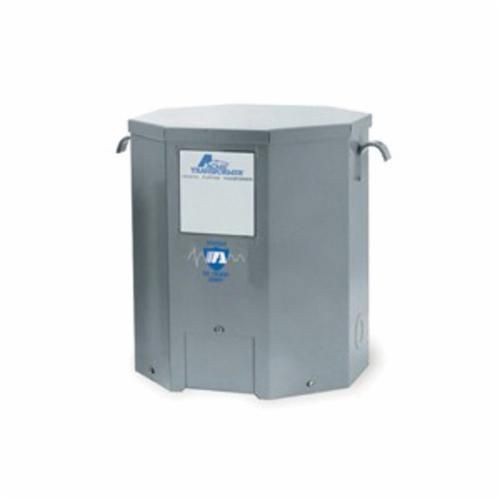

Acme Electric® T2535173S Air Colled/Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 15 kVA Power Rating, 60 Hz, 1 ph Phase

Pick Up Only
Selected T2535173SAcme Electric® T2535163S Air Colled/Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 10 kVA Power Rating, 60 Hz, 1 ph Phase
T2535173SAcme Electric® T2535163S Air Colled/Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 10 kVA Power Rating, 60 Hz, 1 ph Phase

Documents

Short Description

Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.

Features

  • Ground studs for use with non-metallic conduit
  • Quiet operation with sound levels well below NEMA standards
  • Electrostatic shield for enhanced protection
  • Encapsulated core and coil
  • Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air
  • UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration
  • Air cooled/dry cooling
  • Four windings
  • Aluminum, two primary winding, two winding secondary

Specification

Frequency Rating
60 Hz
Insulation
180 deg C
Mounting Type
Wall
Minimum Order Qty
1
Order Interval
1
Catalog ID
ACMT2535173S
Connection Type
Wire Lead Screw
Dimensions
11.59 in L x 14.12 in W x 16.94 in H
Enclosure Type
NEMA 3R
Phase
1
Power Rating
15 kVA
Primary Voltage
240/480 VAC
Secondary Voltage
120/240 VAC
Temperature Rating
115 deg C
Type
Dry
Standard & Approvals
UL 506, File No E79947V1, 50B8, H3221 Listed, CSA Certified, OSHA Compliant, ANSI Approved, IEEE
