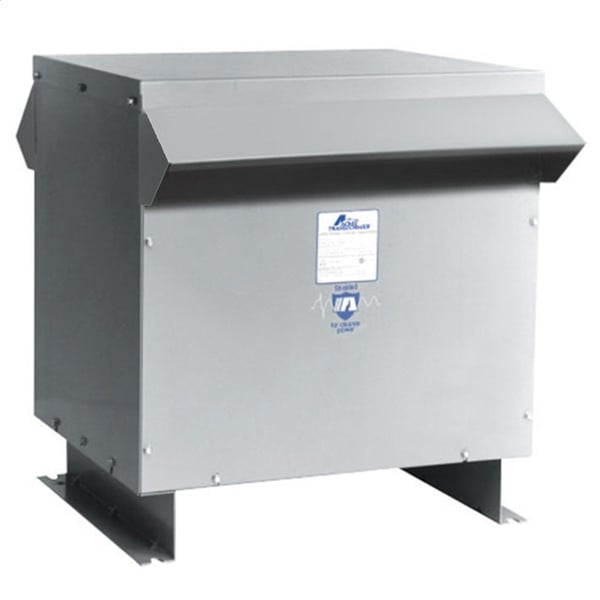

Acme Electric® T3030K0013B Isolation Ventilated Dry Distribution Transformer, 480D VAC Primary, 208Y/120 VAC Secondary, 30 kVA Power Rating, 60 Hz, 3 ph Phase

Selected T3075K0013BAcme Electric® T3030K0013B Isolation Ventilated Dry Distribution Transformer, 480D VAC Primary, 208Y/120 VAC Secondary, 30 kVA Power Rating, 60 Hz, 3 ph Phase
T3075K0013BAcme Electric® T3030K0013B Isolation Ventilated Dry Distribution Transformer, 480D VAC Primary, 208Y/120 VAC Secondary, 30 kVA Power Rating, 60 Hz, 3 ph Phase

Features

  • Quite operation with sound levels below NEMA standards
  • Ventilated - constructed to provide for circulation of external air through the enclosure to remove excess heat, fumes or vapors
  • Type 3R enclosures - intended for outdoor use, primarily to provide a degree of protection against falling rain, sleet and external ice formation
  • Electrostatic shield for enhanced protection

Specification

Power Rating
30 kVA
Primary Voltage
480D VAC
Secondary Voltage
208Y/120 VAC
Temperature Rating
150 deg C
Type
Isolation Ventilated
Standard & Approvals
ANSI Specified, CSA C22.2 No. 47 File No. LR7357-32, IEEE Certified, OSHA Approved, UL 1561 File No. E12547, U.S. DOE 10 CFR Part 431, PROP65: Cancer and reproductive harm - www.P65Warnings.ca.gov for more information
Minimum Order Qty
1
Order Interval
1
Enclosure Type
NEMA 3R
Frequency Rating
60 Hz
Housing Material
Steel
Mounting Type
Floor
Phase
3 ph
Includes
Weathershield
Efficiency
0.9823
Number of Taps
(2) 2.5% ANFC/(4) 2.5% BNFC
Dimensions
19.37 in L x 24.39 in W x 25.5 in H
Connection Type
Terminal Lug
Catalog ID
ACMT3030K0013B
