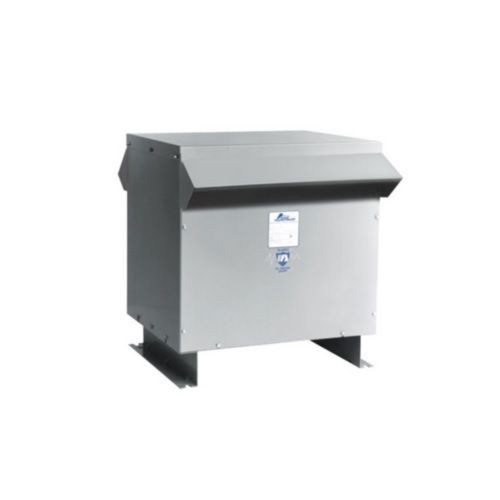

Acme Electric® T3045K0013B Isolation Ventilated Dry Distribution Transformer, 480D VAC Primary, 208Y/120 VAC Secondary, 45 kVA Power Rating, 60 Hz, 3 ph Phase

Pick Up Only
Selected Acme Electric® T3045K0013B Isolation Ventilated Dry Distribution Transformer, 480D VAC Primary, 208Y/120 VAC Secondary, 45 kVA Power Rating, 60 Hz, 3 ph Phase
Acme Electric® T3045K0013B Isolation Ventilated Dry Distribution Transformer, 480D VAC Primary, 208Y/120 VAC Secondary, 45 kVA Power Rating, 60 Hz, 3 ph Phase

Features

  • Quite operation with sound levels below NEMA standards
  • Ventilated - constructed to provide for circulation of external air through the enclosure to remove excess heat, fumes or vapors
  • Type 3R Enclosures - intended for outdoor use, primarily to provide a degree of protection against falling rain, sleet and external ice formation

Specification

Mounting Type
Floor
Minimum Order Qty
1
Order Interval
1
Enclosure Type
NEMA 3R
Temperature Rating
150 deg C
Secondary Voltage
208Y/120 VAC
Dimensions
19.37 in L x 24.39 in W x 25.5 in H
Number of Taps
(2) 2.5% ANFC/(4) 2.5% BNFC
Housing Material
Steel
Phase
3
Type
Ventilated
Standard & Approvals
CSA Certified, UL 1561, File E12547, C22.2 No. 47, LR7357-32, U.S. DOE 10 CFR Part 431
Efficiency
0.984
Includes
Weathershield
Connection Type
Terminal Lug
Catalog ID
ACMT3045K0013B
Frequency Rating
60
Power Rating
45
Primary Voltage
480 VAC Delta
