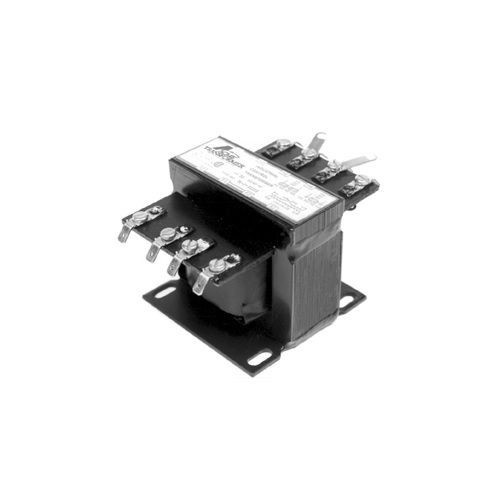

Acme Electric® Legacy™ TB181144 TB Series Open Core and Coil Industrial Control Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 150 VA Power Rating, 50/60 Hz, 1 ph Phase

Selected Acme Electric® Legacy™ TB181144 TB Series Open Core and Coil Industrial Control Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 150 VA Power Rating, 50/60 Hz, 1 ph Phase
Acme Electric® Legacy™ TB181144 TB Series Open Core and Coil Industrial Control Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 150 VA Power Rating, 50/60 Hz, 1 ph Phase

Documents

Short Description

Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized without sacrificing secondary voltage stability beyond practical limits. Acme's TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. Voltage regulation of Acme’s TB Series transformers exceeds standards recommended by the National Electrical Manufacturers Association. Secondary circuit voltage drop between no-load and momentary overload remains exceptionally low. This excellent secondary circuit voltage regulation assures reliable operation of electromagnetic components and may permit the use of a smaller and less expensive industrial control transformer.

Features

  • Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
  • Designs incorporate precision split bobbin wound coils for improved regulation
  • Primary fuse blocks and secondary fuse kits available and easily adaptable
  • Series-parallel connecting links save wiring and labor costs
  • Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors
  • Integrally molded terminal blocks with isolation barriers to prevent arc over
  • Copper windings on all groups
  • Heavy gauge steel mounting plate adapts to various mounting dimensions
  • Voltage regulation exceeds NEMA requirements
  • Open coil and core
  • 0.22 x 0.5 in mounting slot
  • Silicon steel enclosure

Specification

Frequency Rating
50/60 Hz
Housing Material
Steel
Minimum Order Qty
1
Order Interval
1
Enclosure Type
Open
Phase
1
Primary Voltage
120/240 VAC
Mounting Type
Base/Panel
Insulation
Class B/130 deg C
Standard & Approvals
UL 506 Listed, CSA C22.2 No 66 Certified, ANSI Approved, Meets NEC Article 450
Application
For motor starters, contactors, solenoids and timers or other loads
Temperature Rating
80 deg C
Series
TB
Secondary Voltage
12/24 VAC
Power Rating
150 VA
Dimensions
4.78 in L x 3.75 in W x 3.4 in H
Connection Type
Wire Lead Screw
Catalog ID
ACMTB181144
Maximum Amperage Rating
6.25 A
