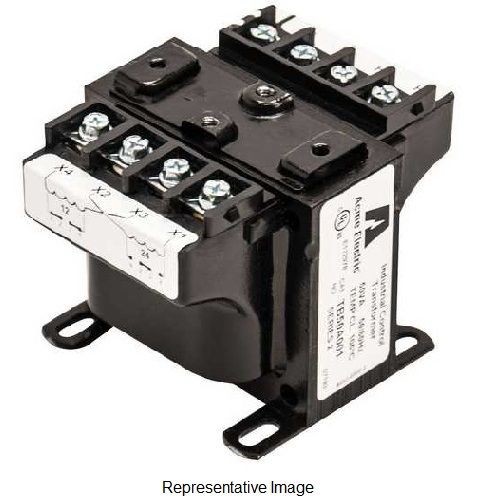

Acme Electric® TB250B001 TB Series Encapsulated Open Core and Coil Industrial Control Transformer, 120 x 240 VAC Primary, 12 x 24 VAC Secondary, 0.25 kVA Power Rating, 50/60 Hz, 1 Phase

Selected Acme Electric® TB250B001 TB Series Encapsulated Open Core and Coil Industrial Control Transformer, 120 x 240 VAC Primary, 12 x 24 VAC Secondary, 0.25 kVA Power Rating, 50/60 Hz, 1 Phase
Acme Electric® TB250B001 TB Series Encapsulated Open Core and Coil Industrial Control Transformer, 120 x 240 VAC Primary, 12 x 24 VAC Secondary, 0.25 kVA Power Rating, 50/60 Hz, 1 Phase

Documents

Short Description

Acme Electric® TB Series industrial control transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized without sacrificing secondary voltage stability beyond practical limits. The transformers windings and internal terminations are sealed within an epoxy encapsulate encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme Electric® TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. Voltage regulation of Acme Electric® TB Series transformers exceeds standards recommended by the national electrical manufacturers association. Secondary circuit voltage drop between no-load and momentary overload remains exceptionally low. This excellent secondary circuit voltage regulation assures reliable operation of electromagnetic components and may permit the use of a smaller and less expensive industrial control transformer.

Features

  • Epoxy encapsulated design protects core and coil assembly from potentially damaging contaminants
  • Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
  • Integrally molded terminal blocks with isolation barriers to prevent arc over
  • Primary fuse blocks kits available and easily adaptable
  • Secondary fuse clips factory installed, where applicable
  • Series parallel connecting links save wiring and labor costs
  • Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors
  • Copper windings on all groups
  • Heavy gauge steel mounting plate adapts to various mounting dimensions
  • Voltage regulation exceeds NEMA requirements

Specification

Frequency Rating
50/60 Hz
Insulation
130 deg C
Mounting Type
Panel
Phase
1
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, CSA C22.2 No. 66.1, CSA C22.2 No. 66.2, cUL Listed, UL 5085-1, UL 5085-2, OSHA Approved, ANSI Specified
Enclosure Type
Open
Maximum Amperage Rating
1 to 2.1 A Input, 10.42 to 20.83 A Output
Housing Material
Silicone Steel
Connection Type
Integrally Molded Terminal Block
Dimensions
4.4 in L x 4.5 in W x 4.38 in H
Application
Motor Starters, Contactors, Solenoids, Timer Circuits, Relays, Control Panels and Robotics Applications
Type
Encapsulated Open Core and Coil
Temperature Rating
80 deg C
Series
TB Series
Secondary Voltage
12/24 V
Primary Voltage
120 x 240 V
Power Rating
0.25 kVA
