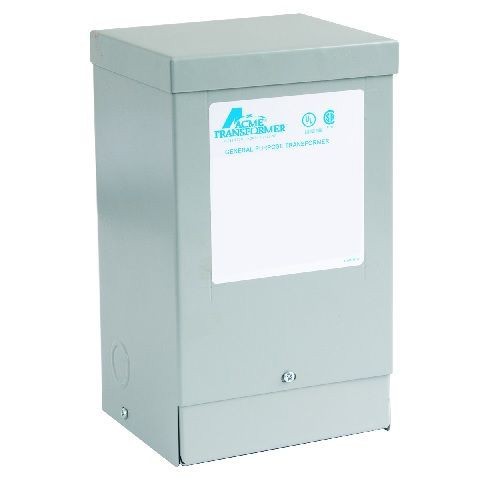

Acme Electric® TF217437S Air Colled/Dry Distribution Transformer, 190/200/208/220/380/400/416/440 VAC Primary, 120/240 VAC Secondary, 1 kVA Power Rating, 50/60 Hz, 1 ph Phase
Acme Electric® TF217437S Air Colled/Dry Distribution Transformer, 190/200/208/220/380/400/416/440 VAC Primary, 120/240 VAC Secondary, 1 kVA Power Rating, 50/60 Hz, 1 ph Phase
SKU: ACMTF217437S
Manufacturer Part Number: TF217437S
UPC: 047503086599
Short Description
Features
- Encapsulated core and coil
- Shielded for cleaner power
- Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air
- Quiet operation with sound levels well below NEMA standards
- Export model
- 190/200/208/220 x 380/400/416/440 VAC primary volt
- Steel enclosure
- Air cooled/dry cooling
- Two winding primary, two winding secondary configuration
- Aluminum winding
- Epoxy encapsulated
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Insulation | Class H/180 deg C |
| Mounting Type | Wall |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Enclosure Type | NEMA 3R |
| Phase | 1 |
| Power Rating | 1 kVA |
| Temperature Rating | 115 deg C |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 506, E79947V1, 50B8, X3221, CSA Certified, CE Certified, OSHA Approved, ANSI Specified, IEEE |
| Dimensions | 5.13 in L x 5.5 in W x 10.5 in H |
| Catalog ID | ACMTF217437S |
| Type | Dry |
| Secondary Voltage | 120/240 V |
| Primary Voltage | 220/440 V |
| Connection Type | Lead Wire |
