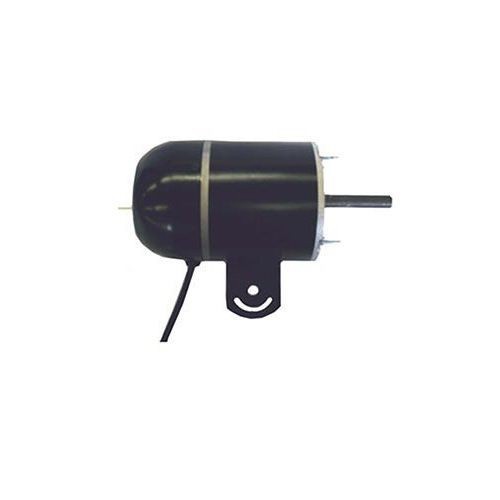

Airmaster® 78019 Non-Oscillating PSC Type Pedestal Fan Motor, Totally Enclosed Air Over Enclosure, 1/3 hp, 115 VAC, 60 Hz, 3 Phase, 48YZ Frame, 1100 rpm Speed, Yoke Mount
Airmaster® 78019 Non-Oscillating PSC Type Pedestal Fan Motor, Totally Enclosed Air Over Enclosure, 1/3 hp, 115 VAC, 60 Hz, 3 Phase, 48YZ Frame, 1100 rpm Speed, Yoke Mount
SKU: AIRI-3A
Manufacturer Part Number: 78019
UPC: 783429780196
Features
- Class B motor insulation
- Auto motor thermal protection
- Permanent split capacitor motor
- Totally enclosed air-over motor
- Ball bearing motor
- Three conductor supply cord and plug
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Mounting Style | Yoke |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 3.2 A |
| Bearing Type | Ball |
| Catalog ID | AIRI-3A |
| Enclosure Type | Totally Enclosed Air Over |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Size | 5/8 in |
| Temperature Rating | -20 to 104 deg F |
| Speed | 1100 rpm |
| Rotation | CWSE |
| Number of Speeds | 3 |
| Frame | 48YZ |
| Standard & Approvals | UL/cUL Listed, OSHA Approved |
| Type | Non-Oscillating |
| Voltage Rating | 115 VAC |
| Horsepower | 1/3 hp |
