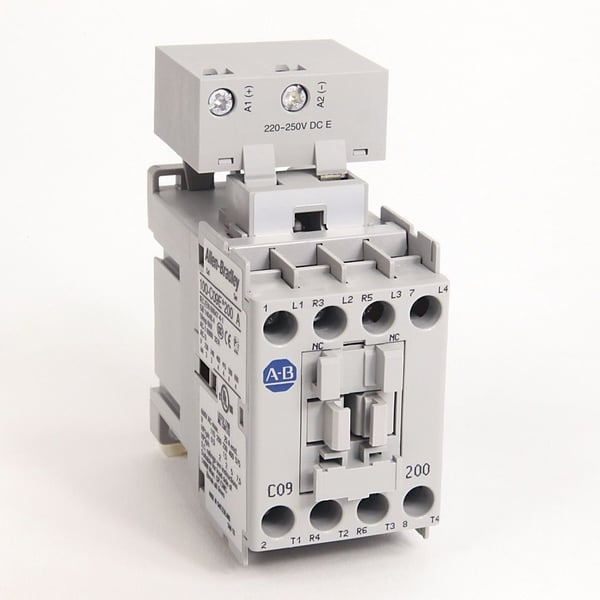

Allen-Bradley 100-C09EA200 100-C IEC Contactor, 220-250V DC Electronic Coil, Screw Terminals, Line Side, 9A, 2 N.O. 2 N.C. Main Contact Configuration
Allen-Bradley 100-C09EA200 100-C IEC Contactor, 220-250V DC Electronic Coil, Screw Terminals, Line Side, 9A, 2 N.O. 2 N.C. Main Contact Configuration
SKU: A-B100C09EA200
Manufacturer Part Number: 100-C09EA200
UPC: 885630241494
Specification
| Minimum Order Qty | 1 |
|---|---|
| Order Interval | 1 |
| 3-Phase kW (50 Hz) 230V Rating | 3 |
| 3-Phase kW (50 Hz) 400V/415V Rating | 4 |
| 3-Phase kW (50 Hz) 500V Rating | 4 |
| 3-Phase kW (50 Hz) 690V Rating | 4 |
| Rated Operating Current, AC-3 | 9A |
| 3-Phase HP (60 Hz) 460V Rating | 5 |
| 3-Phase HP (60 Hz) 230V Rating | 2 |
| 3-Phase HP (60 Hz) 200V Rating | 2 |
| 1-Phase HP (60 Hz) 230V Rating | 1.5 |
| Number Of Poles | 4 Poles |
| Package Quantity | 1 |
| Coil Termination | Line Side |
| 3-Phase HP (60 Hz) 575V Rating | 7.5 |
| Contact Configuration | 2 N.O. 2 N.C. Main Contact Configuration |
| Connection | Screw Terminals |
| Coil Voltage | 208-277V 50/60Hz / 200-255V DC Electronic Coil w/ Elec. Interface |
| Catalog ID | A-B100C09EA200 |
