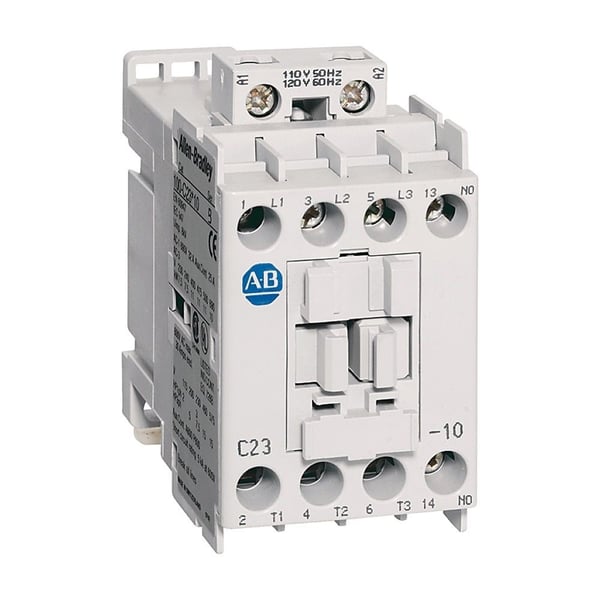

Allen-Bradley 100-C23D300 100-C IEC Contactor, Screw Terminals, Line Side, 23A, 3 N.O. 1 N.C. Main Contact Configuration
Allen-Bradley 100-C23D300 100-C IEC Contactor, Screw Terminals, Line Side, 23A, 3 N.O. 1 N.C. Main Contact Configuration
SKU: A-B100C23D300
Manufacturer Part Number: 100-C23D300
UPC: 662468715966
Documents
Specification
| Package Quantity | 1 |
|---|---|
| 3-Phase HP (60 Hz) 230V Rating | 7.5 |
| 3-Phase HP (60 Hz) 460V Rating | 15 |
| 3-Phase HP (60 Hz) 575V Rating | 15 |
| 3-Phase kW (50 Hz) 230V Rating | 7.5 |
| 3-Phase kW (50 Hz) 400V/415V Rating | 11 |
| 3-Phase kW (50 Hz) 500V Rating | 13 |
| 3-Phase kW (50 Hz) 690V Rating | 10 |
| Coil Termination | Line Side |
| 3-Phase HP (60 Hz) 200V Rating | 5 |
| 1-Phase HP (60 Hz) 230V Rating | 3 |
| Rated Operating Current, AC-3 | 23A |
| Number Of Poles | 4 Poles |
| Contact Configuration | 3 N.O. 1 N.C. Main Contact Configuration |
| Connection | Screw Terminals |
| Coil Voltage | 110V 50Hz / 120V 60Hz |
