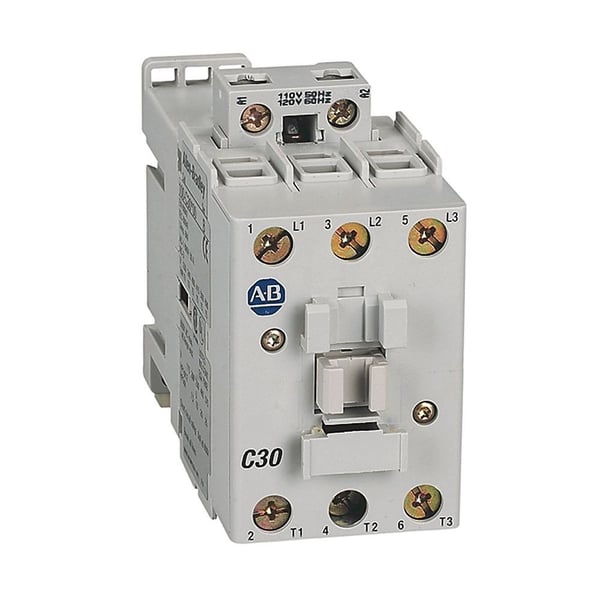

Allen-Bradley, 100-C30A00, 100-C IEC Contactor, 240V 60Hz, Screw Terminals, Line Side, 30A, 0 N.O. 0 N.C. Auxiliary Contact Configuration
Allen-Bradley, 100-C30A00, 100-C IEC Contactor, 240V 60Hz, Screw Terminals, Line Side, 30A, 0 N.O. 0 N.C. Auxiliary Contact Configuration
SKU: A-B100C30A00
Manufacturer Part Number: 100-C30A00
UPC: 662072593394
Documents
Specification
| No of Poles | 3 Poles |
|---|---|
| Package Quantity | 1 |
| Rated Operating Current, AC-3 | 30A |
| 1-Phase HP (60 Hz) 230V Rating | 5 |
| 3-Phase HP (60 Hz) 200V Rating | 7.5 |
| 3-Phase HP (60 Hz) 230V Rating | 10 |
| 3-Phase HP (60 Hz) 460V Rating | 20 |
| 3-Phase HP (60 Hz) 575V Rating | 25 |
| 3-Phase kW (50 Hz) 230V Rating | 10 |
| 3-Phase kW (50 Hz) 400V/415V Rating | 15 |
| 3-Phase kW (50 Hz) 500V Rating | 15 |
| 3-Phase kW (50 Hz) 690V Rating | 15 |
| Coil Termination | Line Side |
| Coil Voltage | 240V 60Hz |
| Connection | Screw Terminals |
| Contact Configuration | 0 N.O. 0 N.C. Auxiliary Contact Configuration |
