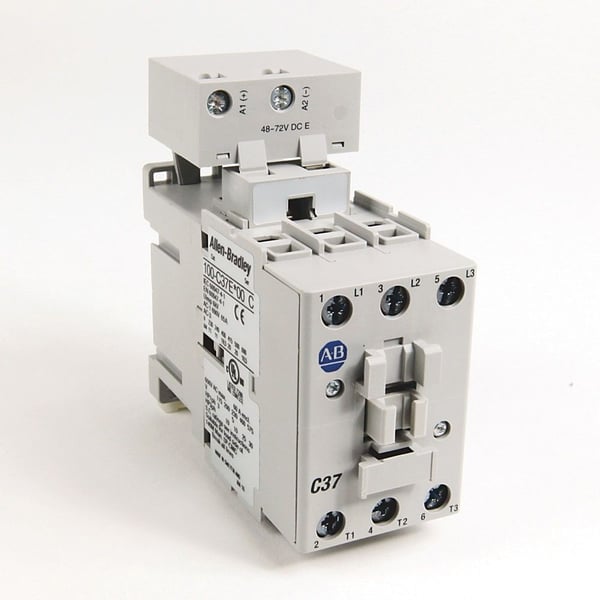

Allen-Bradley 100-C37T00 100-C IEC Contactor, Screw Terminals, Line Side, 37A, 0 N.O. 0 N.C. Auxiliary Contact Configuration
Allen-Bradley 100-C37T00 100-C IEC Contactor, Screw Terminals, Line Side, 37A, 0 N.O. 0 N.C. Auxiliary Contact Configuration
SKU: A-B100C37T00
Manufacturer Part Number: 100-C37T00
UPC: 662072594636
Specification
| Minimum Order Qty | 1 |
|---|---|
| Order Interval | 1 |
| Package Quantity | 1 |
| 3-Phase HP (60 Hz) 230V Rating | 10 |
| 1-Phase HP (60 Hz) 230V Rating | 5 |
| Number Of Poles | 3 Poles |
| Coil Termination | Line Side |
| 3-Phase kW (50 Hz) 400V/415V Rating | 18.5/20 |
| 3-Phase HP (60 Hz) 460V Rating | 25 |
| 3-Phase kW (50 Hz) 690V Rating | 18.5 |
| 3-Phase kW (50 Hz) 500V Rating | 20 |
| 3-Phase kW (50 Hz) 230V Rating | 11 |
| 3-Phase HP (60 Hz) 200V Rating | 10 |
| 3-Phase HP (60 Hz) 575V Rating | 30 |
| Connection | Screw Terminals |
| Contact Configuration | 0 N.O. 0 N.C. Auxiliary Contact Configuration |
| Rated Operating Current, AC-3 | 37A |
| Catalog ID | A-B100C37T00 |
| Coil Voltage | 240V 50Hz / 277V 60Hz |
