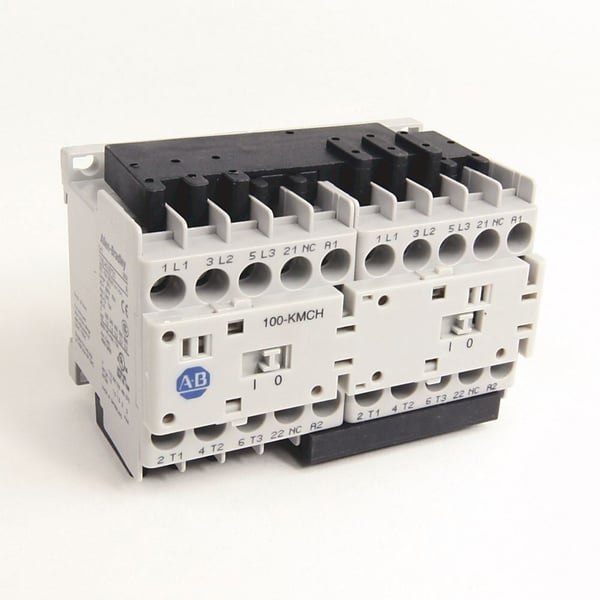

Allen-Bradley 104-K05D02 104-K Mini Reversing Contactors, Screw Type Terminals, 5A, System Control Voltage: 110V 50Hz/120V 60Hz, 3 N.O. Main Contacts, 1 N.C. Auxiliary Contact

Selected 104-K05D02Allen-Bradley 104-K05D02 104-K Mini Reversing Contactors, Screw Type Terminals, 5A, System Control Voltage: 110V 50Hz/120V 60Hz, 3 N.O. Main Contacts, 1 N.C. Auxiliary Contact
104-K05D02Allen-Bradley 104-K05D02 104-K Mini Reversing Contactors, Screw Type Terminals, 5A, System Control Voltage: 110V 50Hz/120V 60Hz, 3 N.O. Main Contacts, 1 N.C. Auxiliary Contact

Specification

Rated Operating Current
5A
Terminal Type
Screw Type Terminals
Minimum Order Qty
1
Order Interval
1
Auxiliary Contact Configuration (Per Contactor)
1 N.C.
Catalog ID
A-B104K05D02
Control Voltage
110V 50Hz/120V 60Hz
Hp, 200V (60 Hz), 3-Phase
1.5
Hp, 230V (60 Hz), 3-Phase
1.5
Hp, 460V (60 Hz), 3-Phase
3
Hp, 575V (60 Hz), 3-Phase
3
kW, 230V (50 Hz), 3-Phase
1.5
kW, 400/415V (50 Hz), 3-Phase
2.2
kW, 500V (50 Hz), 3-Phase
2.2
kW, 690V (50 Hz), 3-Phase
2.2
Main Contact Configuration
3 N.O.
No of Poles
3 Poles
Phases
3 Phase
