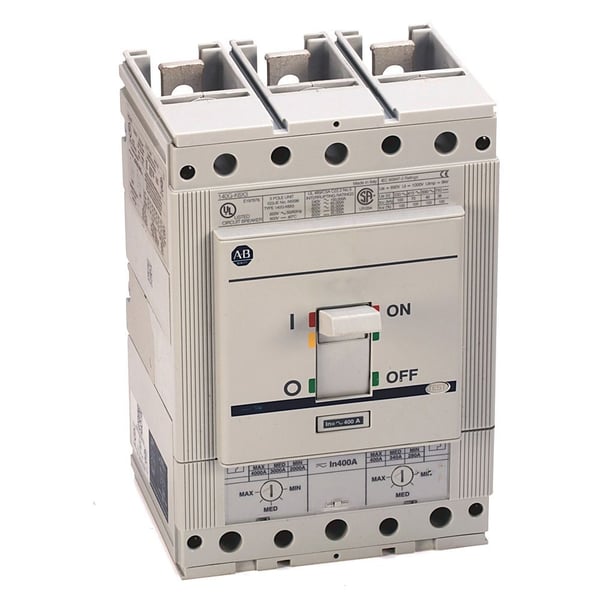

Allen-Bradley 140G-K0F3-D40 140G - Molded Case Circuit Breaker, K frame, 100 kA Interrupt Rating, T/M - Thermal Magnetic, 3 Poles, Rated Current 400 A (80% Rated)
Allen-Bradley 140G-K0F3-D40 140G - Molded Case Circuit Breaker, K frame, 100 kA Interrupt Rating, T/M - Thermal Magnetic, 3 Poles, Rated Current 400 A (80% Rated)
SKU: A-B140GK0F3D40
Manufacturer Part Number: 140G-K0F3-D40
UPC: 887172307232
Documents
Specification
| Protection | T/M - Thermal Magnetic |
|---|---|
| Device Type | 140G - Molded Case Circuit Breaker |
| Number Of Poles | 3 Poles |
| Current Range | 80% Rated |
| Breaking Capacity, 50/60 Hz, 690V (kA) | 70 |
| Breaking Capacity, 50/60 Hz, 440V (kA) | 100 |
| Breaking Capacity, 50/60 Hz, 415V (kA) | 120 |
| Breaking Capacity, 50/60 Hz, 220V (kA) | 200 |
| Interrupting Rating, 50/60 Hz, 600V (kA) | 65 |
| Interrupting Rating, 50/60 Hz, 480V (kA) | 100 |
| Interrupting Rating, 50/60 Hz, 240V (kA) | 200 |
| Frame/Rating | K Frame (400 A) |
