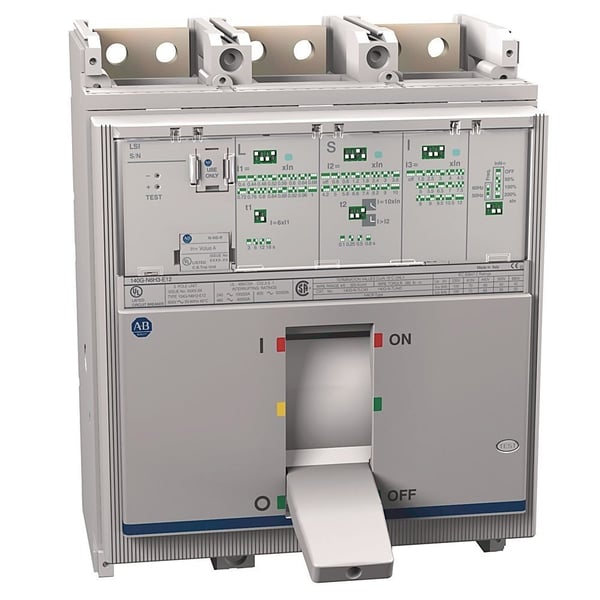

Allen-Bradley 140G-N6K3-E12 Molded Case Circuit Breaker, N frame, 65 kA at 480V, Electronic LSIG - Long & Short Time, High Instantaneous, Ground Fault, Maintenance Instantaneous, Rated Current 1200 A, 3 poles

Selected Allen-Bradley 140G-N6K3-E12 Molded Case Circuit Breaker, N frame, 65 kA at 480V, Electronic LSIG - Long & Short Time, High Instantaneous, Ground Fault, Maintenance Instantaneous, Rated Current 1200 A, 3 poles
Allen-Bradley 140G-N6K3-E12 Molded Case Circuit Breaker, N frame, 65 kA at 480V, Electronic LSIG - Long & Short Time, High Instantaneous, Ground Fault, Maintenance Instantaneous, Rated Current 1200 A, 3 poles

Specification

Frame/Rating
N Frame (1200 A)
Interrupting Rating, 50/60 Hz, 240V (kA)
100
Interrupting Rating, 50/60 Hz, 480V (kA)
65
Interrupting Rating, 50/60 Hz, 600V (kA)
50
Number Of Poles
3 Poles
Protection
LSIG-M (electronic)
Breaking Capacity, 50/60 Hz, 220V (kA)
100
Breaking Capacity, 50/60 Hz, 415V (kA)
70
Breaking Capacity, 50/60 Hz, 440V (kA)
65
Breaking Capacity, 50/60 Hz, 690V (kA)
42
Bulletin Number
140G - Molded Case Circuit Breaker
