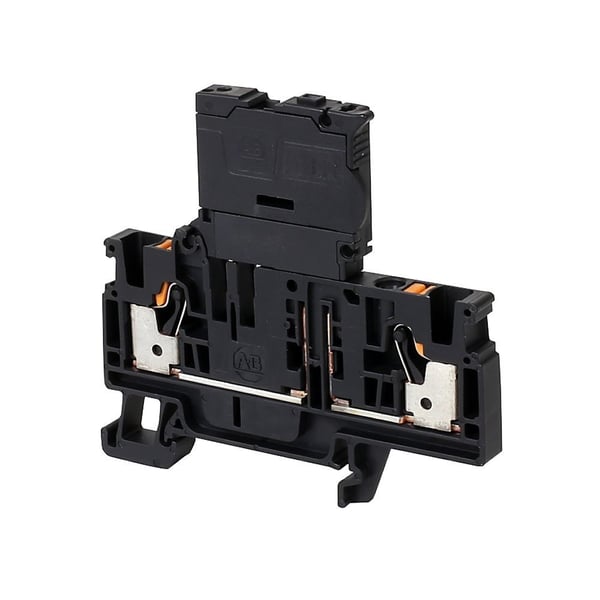

Allen-Bradley 1492-PFB424 1492-P Push-in Terminal Blocks, 4 mm² (AWG 26 - AWG 10), 10 A, Fuse block with LED blown fuse indication (10...36V AC/DC), Single Level, 1 Point On Each Side Per Circuit
Allen-Bradley 1492-PFB424 1492-P Push-in Terminal Blocks, 4 mm² (AWG 26 - AWG 10), 10 A, Fuse block with LED blown fuse indication (10...36V AC/DC), Single Level, 1 Point On Each Side Per Circuit
SKU: A-B1492PFB424
Manufacturer Part Number: 1492-PFB424
UPC: 889508624211
Specification
| Number of Levels | Single Level |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Block Type | Fuse block with LED blown fuse indication (10...36V AC/DC) |
| Catalog ID | A-B1492PFB424 |
| Circuit per Block | Single-Circuit |
| Color | Black |
| Connection Points | 1 Point On Each Side Per Circuit |
| Electrical Standards/ Certifications | IEC / UL / CSA / ATEX / IECEx |
| UL/CSA Current Rating | 10A |
| UL/CSA Voltage Rating | 300V AC/DC |
| Width | 6.1 mm |
| Wire Range (Rated Cross Section) | 4 mm² (AWG 26 - AWG 10) |
| Wiring Diagram | 1492-PFB424 |
