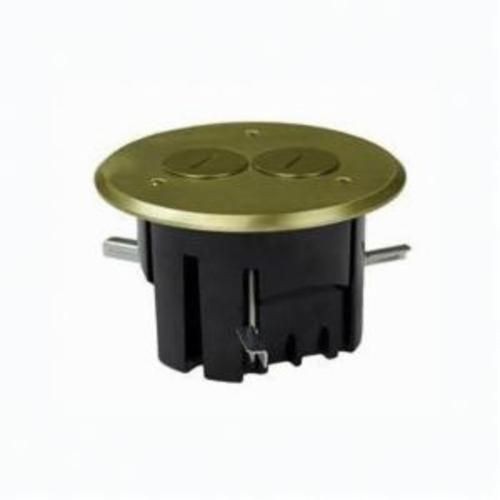

Allied Moulded FB-3 Duplex Floor Box Assembly, Polycarbonate, 24.5 cu-in Capacity, 1 Gangs, 2 Outlets, 2 Knockouts
Allied Moulded FB-3 Duplex Floor Box Assembly, Polycarbonate, 24.5 cu-in Capacity, 1 Gangs, 2 Outlets, 2 Knockouts
SKU: ABXFB-3
Manufacturer Part Number: FB-3
UPC: 085339941255
Documents
Features
- Designed for use in wood floor construction and can be installed with multiple floor substrate materials
- Closed cell rubber gasket
- Galvanized steel dust plate with plated carbon steel fasteners
- Screw plug cover type
- Non-metallic pop-in cable clamp, nitrile O-ring
- Plated carbon steel fasteners
- Metal wing brackets/nonmetal flange floor or ceiling compression
- Tamper-resistant receptacle
- Meets scrub-water exclusion test
- Simple exterior shape for easy cut-in application
- Provisions for cable entry through molded-in speed Klamps™ or 1/2 in knockouts
- Old or new work installation
- Steel wing brackets for secure installation
- Low voltage (LV) openings available for industry standard keystone plugins to be installed
- Cover plug screws and flip lids seal water tight
- Extra deep wiring capacity
Specification
| Knockout Size | 1/2 in |
|---|---|
| Material | Polycarbonate |
| Mounting Type | Floor |
| Number of Gangs | 1 |
| Number of Outlets | 2 |
| Shape | Round |
| Type | Duplex |
| Color | Black |
| Number of Knockouts | 2 |
| Finish | Brass |
| Capacity | 24.5 cu-in |
| Dimensions | 3.94 in W x 3 in D |
| Standard & Approvals | ANSI/UL 514C File No. QCMZ.E30594 |
| Application | For residential wood floor cut-in application for use with nonmetallic sheathed cable, used in areas of the home with large floor space openings |
