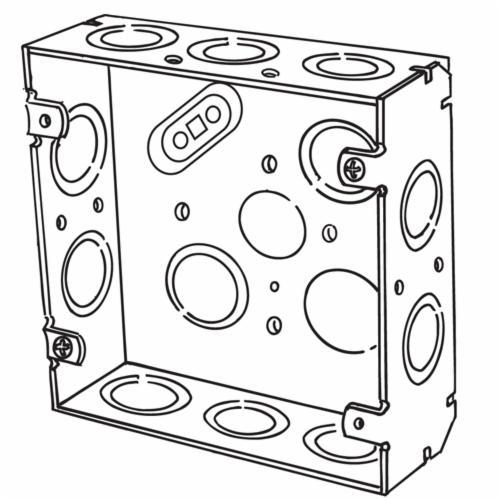

Appleton® ETP™ 4SJ-EK Square Box, Steel, 29.5 cu-in Capacity, 14 Outlets, 14 Knockouts, 4-11/16 in H x 4-11/16 in W x 1-1/2 in D

Selected 4SJ-EKAppleton® ETP™ 4SJ-EK Square Box, Steel, 29.5 cu-in Capacity, 14 Outlets, 14 Knockouts, 4-11/16 in H x 4-11/16 in W x 1-1/2 in D
4SJ-EKAppleton® ETP™ 4SJ-EK Square Box, Steel, 29.5 cu-in Capacity, 14 Outlets, 14 Knockouts, 4-11/16 in H x 4-11/16 in W x 1-1/2 in D

Documents

Short Description

Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality components you need.

Features

  • Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 Volts
  • Unless otherwise noted all concentric or eccentric knockouts are 1/2 - 3/4 in combinations
  • Single and double gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls
  • Other boxes provided with flat ground tapped hole, except plenum boxes
  • 88 lb per 100
  • Bottom knockouts: (1) 1/2 in, (1) 3/4 in, (2) Eccentric
  • Welded construction
  • Raised grounding boss
  • Commercial product
  • 0.0625 in minimum thickness
  • AISI/SAE 1008 Steel

Specification

Knockout Size
3/4 in
Material
Steel
Number of Knockouts
14
Number of Outlets
14
Minimum Order Qty
1
Order Interval
1
Cable Entry
Knockouts
Capacity
29.5 cu-in
Dimensions
4-11/16 in H x 4-11/16 in W x 1-1/2 in D
Enclosure Type
NEMA FB-1/OS-1
Finish
Pre-Galvanized
Series
ETP
Shape
Square
Application
Residential and Commercial Applications
Standard & Approvals
UL E18095, RoHS Compliant
Catalog ID
NEE4SJ-EK
