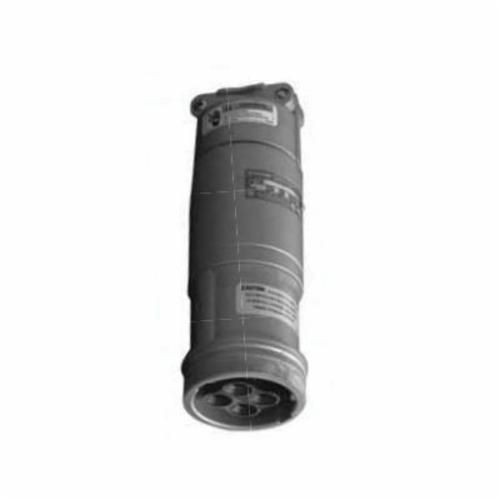

Appleton® Powertite® ARC1044CD ARC 3-Phase Grounding Style 1 Weatherproof Pin and Sleeve Connector Body, 600/250 VAC/VDC, 100 A, 4 Poles, 4 Wires

Selected ARC15034DEAppleton® Powertite® ARC15034CD ARC 3-Phase Grounding Style 2 Pin and Sleeve Connector Body, 150 A, 4 Poles, 3 Wires
ARC15034DEAppleton® Powertite® ARC15034CD ARC 3-Phase Grounding Style 2 Pin and Sleeve Connector Body, 150 A, 4 Poles, 3 Wires

Documents

Short Description

The Powertite Series uses the versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. Available in 30, 60, 100, 150, 200 and 400 Amp designs, these plugs and receptacles are built of triple coated, copper free aluminum to withstand harsh weather, corrosive atmospheres and rough working conditions. Safety features include widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, positive polarization and a durable neoprene bushing that seals out water and dust. Shell only or shell plus extra pole grounding designs provide safe, "make first, break last" grounding. Both standard and reverse service versions are available, and field conversion between the two is simple using a matching plug and receptacle for most styles. Appleton also offers a nonmetallic plug designed to work with Powertite receptacles. Designed for easy installation, the Powertite Series is Appleton's most versatile choice for standard and hazardous locations.

Features

  • Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
  • Copperfree (4/10 of 1% max.) aluminum, epoxy powder coat finish
  • Natural finish glass filled polyester insulating blocks
  • Grounding style 1 (shell only) connector body
  • Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations, and similar apparatus
  • Ideal for use on shipping docks, ports, and other "ship to shore" applications
  • Any application that requires rugged, weatherproof electrical connections
  • Rough usage construction
  • Oil platforms and refineries
  • Weatherproof, water resistant, copper contact material
  • 0.39 in wire recess diameter
  • 0.88 - 1.91 in connector
  • 3 phase
  • 4 - 1 AWG (building), 4 - 2 AWG (extra flex)

Specification

Frequency Rating
50 - 400 Hz
Material
Aluminum
NEMA Rating
NEMA 3/3R/4/4X
Number Of Poles
4
Number of Wires
4
Temperature Rating
-40 to 225 deg F
Amperage Rating
100 A
Dimensions
16 in L x 4-1/4 in W
Standard & Approvals
CSA C22.2 No. 182.1, File No. 065179 Certified, NEMA FB11, RoHS Complaint, UL 1682, 1686, 50E File No. E145916, E145917 Listed
Voltage Rating
600/250 VAC/VDC
Terminal Type
Pressure Wire
