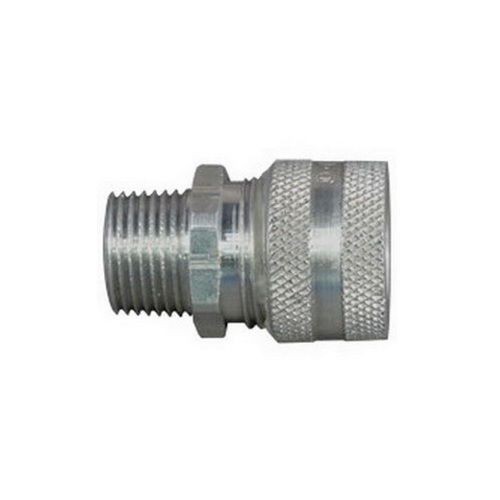

Appleton® CG-5050 CG Series Strain Relief Straight Cord Connector, 1/2 in Trade, 1/2 to 5/8 in Cable Openings, Aluminum, Natural
Appleton® CG-5050 CG Series Strain Relief Straight Cord Connector, 1/2 in Trade, 1/2 to 5/8 in Cable Openings, Aluminum, Natural
SKU: APPCG-5050
Manufacturer Part Number: CG-5050
UPC: 781381191401
Short Description
Features
- Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed
- Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
- Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
- Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap
- For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors
- Provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
- Copperfree (4/10 of 1% or less) aluminum cap, neoprene sealing grommet, steel or Teflon washer
- Liquidtight
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Trade Size | 1/2 in |
| Type | Strain Relief |
| Standard & Approvals | Class I, Division 2, Class II, Division 1 and 2, Class III, NEMA 3R, UL 514B, E14817 Listed, CSA C22.2 No 18.3, CSA 065178 Certified, RoHs Compliant |
| Dimensions | 1-1/4 in Dia |
| Connection Type | Threaded |
| Color | Pink |
| Catalog ID | APPCG-5050 |
| Cable Openings | 1/2 - 5/8 in |
