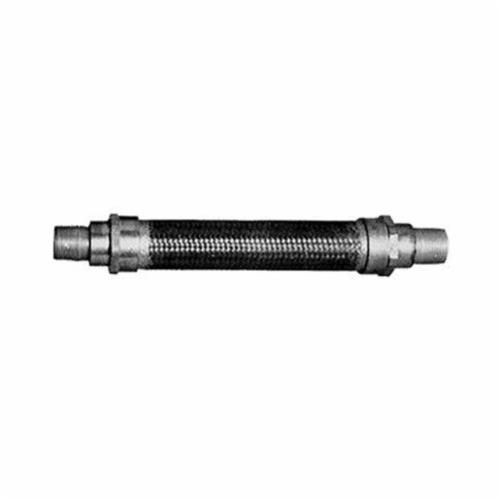

Appleton® UNILETS® EXGJH-218 Dust-Ignitionproof Explosionproof Flexible Watertight Conduit Coupling, 3/4 in, For Use With IMC/Threaded Rigid Metallic Conduit, Brass/Bronze, Natural

Selected EXGJH-318Appleton® UNILETS® EXGJH-112 Dust-Ignitionproof Explosionproof Flexible Watertight Conduit Coupling, 1/2 in, For Use With IMC/Threaded Rigid Metallic Conduit, Brass/Bronze, Natural
EXGJH-318Appleton® UNILETS® EXGJH-112 Dust-Ignitionproof Explosionproof Flexible Watertight Conduit Coupling, 1/2 in, For Use With IMC/Threaded Rigid Metallic Conduit, Brass/Bronze, Natural

Documents

Short Description

For explosionproof and dust-ignitionproof protection wherever lengths of conduit are joined or connected to an enclosure, count on the quality materials and construction of hazardous location conduit fittings from Appleton Group. We offer sizes, styles and materials to meet any requirement, along with innovative products such as swivel elbows and flexible couplings to simplify challenging installations. We supply the close-up plugs, reducers and other fittings needed to complete any hazardous location installation of threaded rigid metal conduit or IMC.

Features

  • Explosion proof, dust-ignition proof, watertight
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Heavy duty design resists mechanical abuse
  • Electrical conductivity equal to rigid conduit on a similar length basis no bonding jumper required
  • Interior insulating liner protects conductors from abrasion under vibrating conditions.
  • Both end fittings are female, each furnished with a removable male nipple
  • 12 in bending radius
  • Outer bronze braid, inner brass core with insulating liner

Specification

Material
Bronze
Minimum Order Qty
1
Order Interval
1
Catalog ID
APPEXGJH-218
Dimensions
1-3/4 in OD x 18 in L
Finish
Natural
Size
3/4 in
Type
Flexible
Standard & Approvals
UL 1203, E10444, CSA C22.2 No. 25, Class I, Groups A, B, C, D; Class II, Groups E, F, G, Class III, RoHS Compliant
Application
For use in areas where vibration or movement is a problem, place of rigid conduit in difficult-bend situations, wet locations
Suitable For Use With
Threaded IMC/Rigid Metal Conduits
Series
EXGJH
