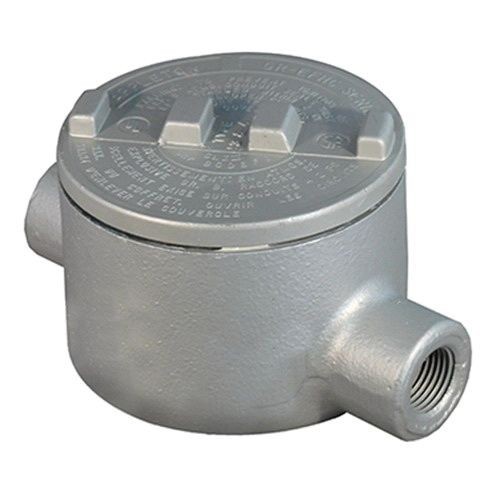

Appleton® UNILETS® GRC100 C-Style Dust-Ignitionproof Explosionproof Conduit Outlet Box With Cover, 1 in, 3.38 in Cover Opening, 18 cu-in, Triple Coated

Selected GRC75Appleton® UNILETS® GRC100 C-Style Dust-Ignitionproof Explosionproof Conduit Outlet Box With Cover, 1 in, 3.38 in Cover Opening, 18 cu-in, Triple Coated
GRC75Appleton® UNILETS® GRC100 C-Style Dust-Ignitionproof Explosionproof Conduit Outlet Box With Cover, 1 in, 3.38 in Cover Opening, 18 cu-in, Triple Coated

Documents

Short Description

Appleton Group’s explosionproof conduit outlet boxes for NEC and CEC governed locations feature generous interior space, accurately tapped and tapered hub threads for a rigid joint and reliable ground continuity, and smooth integral bushings to protect conductor insulation from damage. They are available in a wide variety of sizes, styles, materials and hub configurations, all designed for ease of installation and reliable safety in locations exposed to explosive atmospheres or flammable dusts.

Features

  • Explosion proof, dust ignition proof
  • Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact and shock
  • Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
  • Furnished with copper-free (4/10 of 1 PCT maximum) aluminum cover
  • Function as sealing fcuttings when used with sealing covers
  • Internally threaded body with externally threaded cover
  • Covers have pry notches for bar or wrench
  • Accommodate sealing, dome, hub and union hub covers and canopies
  • Standard O-rings provide raintight fit NEMA 3, 4
  • Internal ground screw standard
  • Smooth rounded integral bushing in hub box protects conductor insulation
  • Complies with a wide range of classified area requirements
  • Corrosion resistant ideal indoors or out
  • For pulling of wires
  • Connect conduit lengths and change direction of conduit runs
  • Provide access for maintenance
  • GR boxes offers ten hub arrangement
  • Round back type
  • Triple Coat (Zinc electro plated Chromate and Epoxy Powder Coated)
  • Form 1

Specification

Material
Malleable Iron
Minimum Order Qty
1
Order Interval
1
Capacity
18 cu-in
Color
Gray
Size
1 in
Catalog ID
APPGRC100
Finish
Triple Coat
Standard & Approvals
Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class III, RoHS Compliant
Type
C style
Suitable For Use With
Threaded Metal Conduit
Series
GR
Dimensions
3-3/4 in H x 3-3/4 in W x 2-1/4 in D
Cover Opening Size
3.38 in
