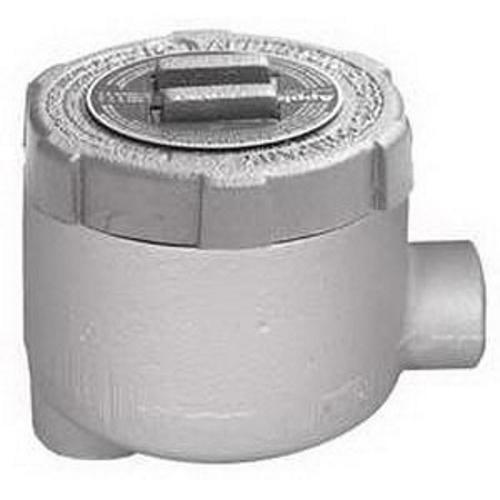

Appleton® Unilets™ GULB50 GU Series Type LB Dust-Ignitionproof Conduit Outlet Box, 1/2 in, 3.38 in Cover Opening, 19 cu-in, Tri-Coated
Appleton® Unilets™ GULB50 GU Series Type LB Dust-Ignitionproof Conduit Outlet Box, 1/2 in, 3.38 in Cover Opening, 19 cu-in, Tri-Coated
SKU: APPGULB50
Manufacturer Part Number: GULB50
UPC: 781381517539
Documents
Features
- Malleable iron bodies have high tensile strength and ductility
- Provides great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Externally threaded body with internally threaded cover
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classifi ed area requirements
- Corrosion resistant - ideal for indoor and outdoor installations
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Triple coat of zinc electroplate, chromate and epoxy powder coated finish
Specification
| Suitable For Use With | Threaded Metal Conduit System |
|---|---|
| Size | 1/2 in |
| Series | GU Series |
| Material | Malleable Iron |
| Dimensions | 4.28 in H x 4.28 in W x 2-1/4 in D |
| Cover Opening Size | 3.38 in |
| Finish | Tri-Coated |
| Color | Gray |
| Type | Type LB Dust-Ignitionproof |
| Capacity | 19 cu-in |
