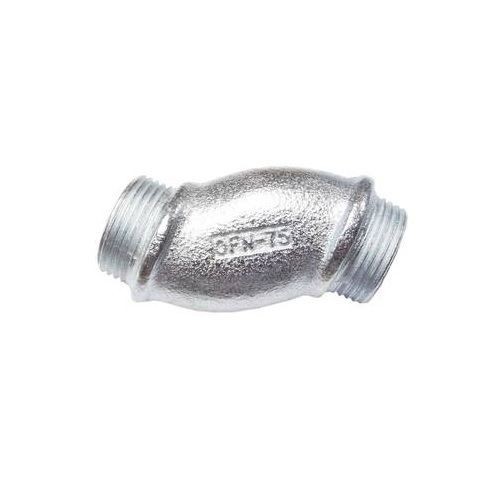

Appleton® OFN-75 Offset Conduit Nipple, 3/4 in, For Use With IMC/Rigid Conduit Fittings, Malleable Iron, Zinc Plated
Appleton® OFN-75 Offset Conduit Nipple, 3/4 in, For Use With IMC/Rigid Conduit Fittings, Malleable Iron, Zinc Plated
SKU: APPOFN-75
Manufacturer Part Number: OFN-75
UPC: 781381642354
Documents
Features
- Allows misaligned knockout connection by rolling the offset nipple until aligned with each knockout
- 0.44 in thread length
- Male threaded connection
Specification
| Material | Malleable Iron |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | APPOFN-75 |
| Dimensions | 3/4 in Dia |
| Finish | Zinc Plated |
| Series | OFN |
| Suitable For Use With | Rigid/IMC Conduit |
| Application | For used through knockout to connect box to conduit coupling |
| Standard & Approvals | UL 514B, UL E14814 Listed, CSA C22.2 No 18.3, CSA 065178 Certified, NEMA FB-1, RoHS Complaint |
| Type | Offset |
| Size | 3/4 in |
