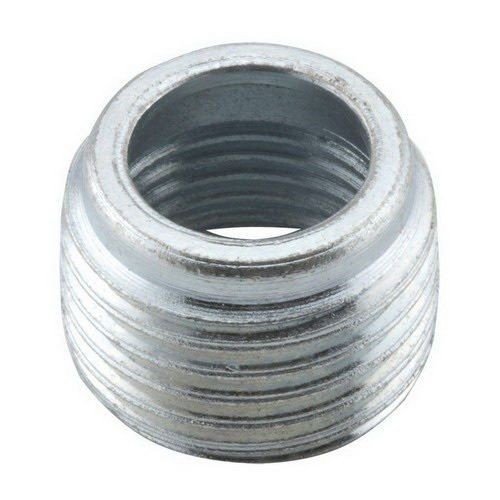

Appleton® RB200-50A Reducing Bushing, 2 x 1/2 in Trade, Aluminum, Natural

Selected Appleton® RB200-50A Reducing Bushing, 2 x 1/2 in Trade, Aluminum, Natural
Appleton® RB200-50A Reducing Bushing, 2 x 1/2 in Trade, Aluminum, Natural

Documents

Short Description

O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.

Features

  • NPT connection
  • Smooth rounded integral bushing protects conductor insulation Special Features
  • Enclosure Class I Group A B C D, Class II Group E F G, Class III

Specification

Material
Aluminum
Minimum Order Qty
1
Order Interval
1
Catalog ID
APPRB200-50A
Color
Silver
Dimensions
13/16 in L
Finish
Natural
Trade Size
2 x 1/2 in
Type
Threaded
Application
For reducing conduit entries to a smaller size in threaded rigid and IMC conduit systems
Standard & Approvals
UL 886 (1203), UL E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181, RoHS Complaint
