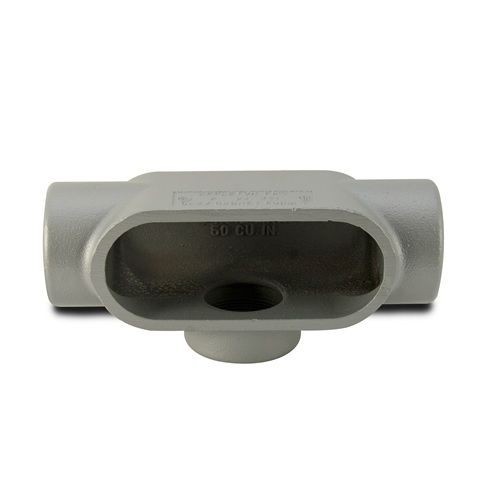

Appleton® UNILETS™ T87 Type T Conduit Outlet Body, 3 in Hub, Form 7 Form, 133 cu-in Capacity, Grayloy Iron, Triple Coated
Appleton® UNILETS™ T87 Type T Conduit Outlet Body, 3 in Hub, Form 7 Form, 133 cu-in Capacity, Grayloy Iron, Triple Coated
SKU: APPT87
Manufacturer Part Number: T87
UPC: 781381507141
Documents
Short Description
Features
- Serve as pulling fittings
- Make bends in conduit system
- Provide openings for splicing, connect and change direction of conduit runs
- Allow connections for branch runs
- Permit access to conductors for maintenance
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
- Equivalent FM7 and Form 7 units have identical applications and installation dimensions
- Flat back design provides greater cubic content for easier wire pulling and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Smooth hub openings allow easy conduit joining
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
- Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated)
Specification
| Material | Grayloy Iron |
|---|---|
| Number of Hubs | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Gray |
| Connection Type | Tapered FNPT |
| Enclosure | NEMA FB-1 |
| Finish | Triple Coat |
| Form | 7 |
| Type | Type T |
| Standard & Approvals | UL 514A/514B/E2527, CSA C22.2 No. 18.3, CSA 065183 |
| Hub Size | 3 in |
| Application | For rigid steel, rigid aluminum conduit and IMC |
| Dimensions | 12.06 in L x 5.75 in W x 4.38 in H |
| Catalog ID | APPT87 |
| Capacity | 133 cu-in |
