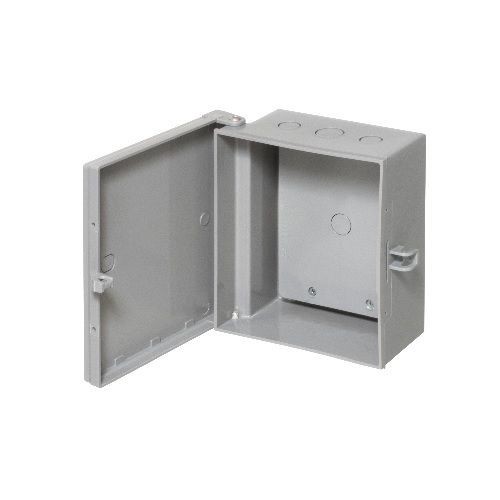

Arlington EB0708BP Heavy Duty Non-Metallic Enclosure Box With Back Plate, 5-1/2 in W x 3-1/2 in D x 7 in H, NEMA 3R, Plastic

Selected Arlington EB0708BP Heavy Duty Non-Metallic Enclosure Box With Back Plate, 5-1/2 in W x 3-1/2 in D x 7 in H, NEMA 3R, Plastic
Arlington EB0708BP Heavy Duty Non-Metallic Enclosure Box With Back Plate, 5-1/2 in W x 3-1/2 in D x 7 in H, NEMA 3R, Plastic

Short Description

Arlington non-metallic enclosure boxes meet NEMA 3R requirements for outdoor use. They're the perfect solution for protecting and securing power backups, security devices and other valuable equipment indoors or outside. Made of heavy duty, UV rated non-metallic material and available in three sizes - our boxes are NEMA 3R rated for outdoor use when mounted with the hinge on top. Using a back plate allows an installer to mount components to the plate even after the enclosure box is mounted. Changing batteries and doing other maintenance work is easily accomplished by removing the plate. Arlington enclosure boxes are 'lockable' via a knockout on the front of the box for a cam lock - or a latch that holds a padlock.

Features

  • The included back plate allows for components to be mounted even after the enclosure is mounted
  • UV rated

Specification

Length
7 in
Material
Plastic
NEMA Rating
NEMA 3R
Minimum Order Qty
1
Order Interval
1
Color
Gray
Depth
3-1/2 in
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, cETLus Listed
Width
5-1/2 in
Type
Heavy Duty Non-Metallic
Cover Type
Hinged
Catalog ID
ARTEB0708BP
Cable Entry Size
1/2 in, 3/4 in Knockouts
Lock
Cam/Latch
