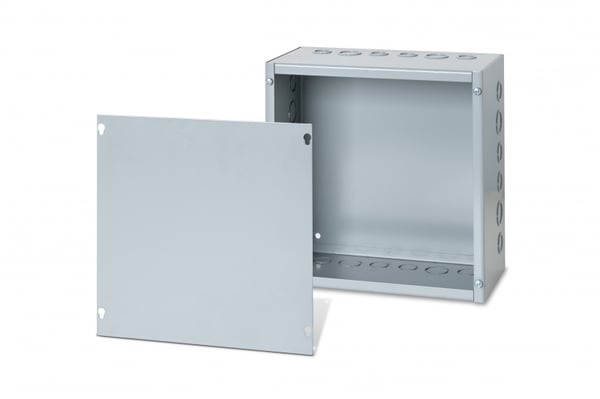

Austin Electrical Enclosures AB-886SB Screw Cover Boxes, 8 in h x 8 in w x 6 in d, Screw-On cover, NEMA 1, Galvanized Steel
Austin Electrical Enclosures AB-886SB Screw Cover Boxes, 8 in h x 8 in w x 6 in d, Screw-On cover, NEMA 1, Galvanized Steel
SKU: AUSAB-886SB
Manufacturer Part Number: AB-886SB
EAN: 0707353009178
UPC: 707353009178
Documents
Features
- Boxes are furnished with or without Knockouts
- If Knockouts are requested, a combination of 1/2 - 3/4" and 3/4 - 1" standard conduit sizes are furnished
- Boxes under 48"x36" have 5/16" mounting holes
- Boxes 48"x36" and over have 7/16" mounting holes
- Keyhole slots in covers are standard in square boxes up to 24" x 24"
- Special Knockout or Knockout arrangements
- Special Finishes
- Custom Size or Construction
- 6 lbs weight
Specification
| Material | Galvanized Steel |
|---|---|
| Finish | Polyester Powder Coated |
| Depth | 6 in |
| Height | 8 in |
| Cover Type | Screw-On |
| Width | 8 in |
| NEMA Rating | NEMA 1 |
| Type | Screw Cover Boxes |
| Color | Gray |
