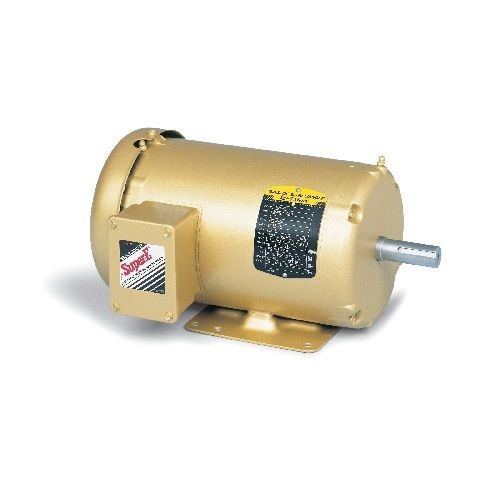

***CLEARANCE*** Baldor-Reliance Super-E® EM3710T-G Continuous Duty Direct On Line Type 3738M AC Motor With AEGIS® Bearing Protection Ring, 7.5 hp, 208/230/460 VAC, 60 Hz, 3 ph, 213T, 1770 rpm, Foot Rigid Mount, TEFC Enclosure

Selected ***CLEARANCE*** Baldor-Reliance Super-E® EM3710T-G Continuous Duty Direct On Line Type 3738M AC Motor With AEGIS® Bearing Protection Ring, 7.5 hp, 208/230/460 VAC, 60 Hz, 3 ph, 213T, 1770 rpm, Foot Rigid Mount, TEFC Enclosure
***CLEARANCE*** Baldor-Reliance Super-E® EM3710T-G Continuous Duty Direct On Line Type 3738M AC Motor With AEGIS® Bearing Protection Ring, 7.5 hp, 208/230/460 VAC, 60 Hz, 3 ph, 213T, 1770 rpm, Foot Rigid Mount, TEFC Enclosure

Short Description

Baldor-Reliance HVAC motors are specifically engineered with industry-driven designs to keep your air handling systems running smoothly, quietly and efficiently, which means better system reliability and performance, with less maintenance.

Features

  • Class H insulation for increased protection on inverter use
  • Internal AEGIS® bearing protection ring for bearing current mitigation on drive end retainer ring
  • Designed for longevity
  • Suitable for inverter use

Specification

Frame
213T
Frequency Rating
60
Horsepower
7.5
Insulation Class
Class H
Material
Steel
Mounting Style
Foot Rigid
Number of Speeds
1
Clearance
YES
Minimum Order Qty
1
Order Interval
1
Amperage Rating
20/19/9.5 A
Bearing Type
Ball
Catalog ID
BDREM3710T-G
Dimensions
19.01 in L x 12.42 in H
Enclosure Type
TEFC
Phase
3
Rotation
Reversible
Service Factor
1.15
Speed
1770
Temperature Rating
40
Torque Rating
22.2
Type
Continuous Duty Direct On Line Type 3738M
Voltage Rating
208/230/460 VAC
Standard & Approvals
CSA/CSA EEV Certified, RoHS Compliant, UR Listed
Shaft Size
1/3/2008 12:00:00 AM
