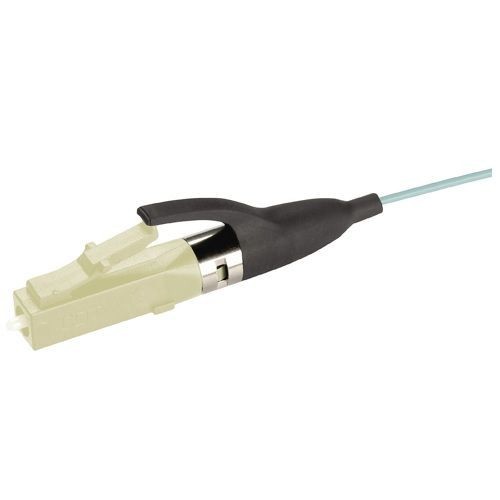

Belden® Optimax® AX101981 Field Installable Fiber Optic Connector, LC Connector, Multi-Mode OM1 Fiber, 900 um Bare Buffer, Ceramic Ferrule

Selected Belden® Optimax® AX101981 Field Installable Fiber Optic Connector, LC Connector, Multi-Mode OM1 Fiber, 900 um Bare Buffer, Ceramic Ferrule
Belden® Optimax® AX101981 Field Installable Fiber Optic Connector, LC Connector, Multi-Mode OM1 Fiber, 900 um Bare Buffer, Ceramic Ferrule

Short Description

Involved in the development of optical fiber components for over 40 years, Belden is a leading supplier of high-quality, cost effective optical fiber cabling systems. The FiberExpress (FX) Systems are the culmination of Belden's experience and expertise in a variety of applications, including data centers, premise and campus network backbone infrastructures, fiber-tothe-desk (FTTD) applications and horizontal and centralized cabling systems. Guaranteed to meet or exceed all applicable TIA/EIA, ISO/IEC and IEEE standards, each end-to-end FX System is designed to offer reduced complexity, increased flexibility and rapid installation.

Features

  • Optimax connectors do not require epoxy, curing or polishing
  • Their unique design incorporates a factory polished fiber stub in a splice mechanism which provides a fast, secure, and reliable termination on optical fiber cables
  • Easy to install, no complicated tools required
  • The optimax optical fiber field installable connectors are high-quality LC, SC and ST compatible connectors that use a ceramic ferrule with a physical contact (pc) polish for multimode connectors and a super physical contact (spc) polish for single mode connectors that ensure the best possible mating of optical fibers
  • Pre-radiused PC ceramic ferrule ensures contact with optical fibers, improves durability, provides high performance
  • Unlimited shelf life - epoxy products have a tendency to dry out if left on the shelf too long
  • Easy connection to learn optimax training video on CD (NOT0580) offers efficient and consistent training for field services personnel
  • Small form factor LC connector for high density solution
  • 0 to 60 deg C temperature rating
  • -40 to 65 deg C storage temperature
  • 62.5 UM/125 UM nominal fiber size
  • 0.3 dB insertion loss
  • -30 dB reflectance
  • 6.7 N tensile load
  • 1.514 in L x 0.176 in W x 0.176 in H size
  • OM1 Multimode fiber

Specification

Material
Plastic
Cable Construction
900 um Bare Buffer
Color
Beige
Connector Type
LC
Standard & Approvals
RoHS Compliant
Fiber Type
Multi-Mode OM1
Ferrule Type
Ceramic
Application
For 900 UM buffered fiber and indoor termination of fiber cables, patch panels, communication outlets, fiber-to-the-desk, distribution frames, direct termination to equipment, fiber cable repair, campus, customer premise/access network, data centers
Type
Field Installable
