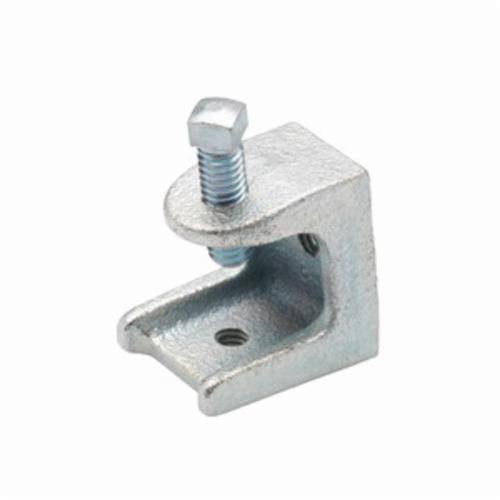

Bridgeport® 954 Single Screw Insulator Support Beam Clamp, 1/2-13 Rod, 300 lb Load, Malleable Iron, Electro-Plated Zinc
Bridgeport® 954 Single Screw Insulator Support Beam Clamp, 1/2-13 Rod, 300 lb Load, Malleable Iron, Electro-Plated Zinc
SKU: BRT954
Manufacturer Part Number: 954
UPC: 781747009548
Documents
Features
- Single screw beam clamp insulator support with two threaded holes
- 1.03 in jaw openings
- Insulator support
- Zinc Electroplated finish
Specification
| Load Capacity | 300 lb |
|---|---|
| Material | Malleable Iron |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | http://www.youtube.com/watch?v=6U1BXIvhbys&list=PLthVSwcaAOOyMZehkVqHsKMF2voKXTSHt |
| Catalog ID | BRT954 |
| Dimensions | 2-1/2 in L x 2-1/2 in W x 2-1/8 in H |
| Finish | Zinc Plated |
| Specifications | 1/2-13 Tap Size (UNC), 2-1/2 in Trade Size |
| Application | For single screw beam clamp insulator support with two threaded holes |
| Standard & Approvals | UL Listed, cULus Listed |
| Rod Size | 1/2/2013 12:00:00 AM |
