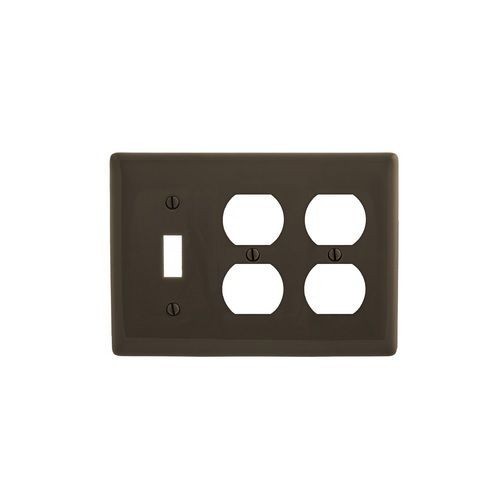

Bryant Electric NP182 Standard Combination Wallplate, 3 Gangs, Brown, 4.63 in H x 6.5 in W, Nylon
Bryant Electric NP182 Standard Combination Wallplate, 3 Gangs, Brown, 4.63 in H x 6.5 in W, Nylon
SKU: HWSNP182
Manufacturer Part Number: NP182
UPC: 883778105739
Documents
Short Description
Features
- Standard size is 1/8 in larger to give you extra coverage to hide rough box openings
- Curved corners for improved aesthetics, for use in any application
- Reinforcement ribs for extra strength
- Captive screw feature holds mounting screw in place for quick and easy installation
- High-impact, self-extinguishing nylon material, which is virtually unbreakable
- Smooth, easy to clean finish is highly resistant to solvents and cleaning solutions, providing long life in the harshest environments
- Steel painted, slotted head mounting screws
- Protection against contact of live terminals and wiring
- Provides finished look to installation
- -40 to 80 deg C operating temperature
- Screw mounting
Specification
| Material | Nylon |
|---|---|
| Orientation | Vertical |
| Type | Standard |
| Construction | Molded |
| Finish | Smooth |
| Number of Gangs | 3 |
| Mounting | Threaded |
| Color | Brown |
| Thickness | 1/4 in |
| Size | 4.63 in H x 6.5 in W |
| Standard & Approvals | UL 514D, UL File No. E31999, E92074, CSA C22.2 No. 42.1, CSA File No. 1733174 |
| Number of Ports | 5 |
| Cutout | 0.925 in H x 0.406 in W Toggle, 2.66 in H x 1.34 in W Duplex |
