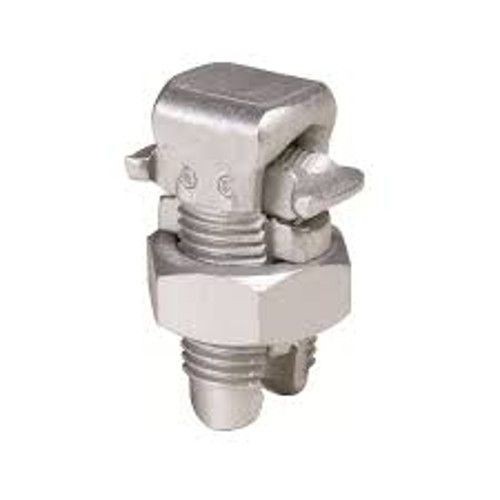

BURNDY® TRITAP™ SERVIT® KSA2 Split Bolt Connector, (1) 8 to 2 AWG, 6 to 2 AWG Conductor, 1.58 in L, Aluminum

Selected BURNDY® TRITAP™ SERVIT® KSA2 Split Bolt Connector, (1) 8 to 2 AWG, 6 to 2 AWG Conductor, 1.58 in L, Aluminum
BURNDY® TRITAP™ SERVIT® KSA2 Split Bolt Connector, (1) 8 to 2 AWG, 6 to 2 AWG Conductor, 1.58 in L, Aluminum

Features

  • No scratch brushing required
  • No oxide inhibitor required
  • Orients the conductor
  • Provides maximum pressure and assures a secure connection of run and tap conductors
  • Facilitates piercing the aluminum conductor surface oxides
  • 90 deg C rated temperature
  • Provides a low contact resistance
  • Provides equal coefficient of expansion inhibits the reformation of oxides by producing a gas-tight seal
  • Provides improved retention of minimum to maximum conductor combinations
  • Conductor Type: Run: Commercial Stranded Aluminum, Commercial Stranded And Solid Copper, Tap: Commercial Stranded Aluminum, Commercial Stranded And Solid Copper
  • 0.94 in cross flats
  • 6 - 2 AWG of aluminum run size (range) and copper stranded run (range), 8 - 2 AWG of copper tap range, copper solid tap (range) and aluminum tap size (range)
  • 2 - 8 AWG Stranded of min tap size with max run size, 2 - 2 AWG stranded of max tap size with max run size, 6 - 8 AWG stranded min tap size with min run size
  • High Strength Aluminum

Specification

Standard & Approvals
UL 486B, CSA Certified, RoHS Compliant
Torque Rating
275 in-lb
Conductor Size
8 to 2 AWG
Number of Conductors
1
Finish
Tin Plated
Length
1.58 in
Width
0.69 in
Material
Aluminum
Series
KSA
