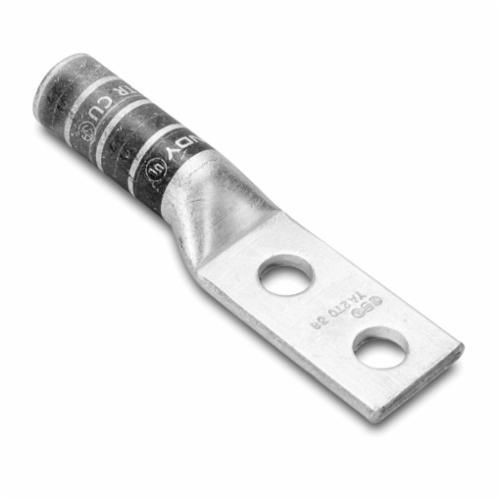

BURNDY® HYLUG™ YA3C2TC38 YA-2TC 2-Hole Compression Lug, 3 AWG Stranded Copper Conductor, Die Code: 9, 3/8 in Stud, Tin Plated Copper

Selected YA6C-2TC38BURNDY® HYLUG™ YA4C2TC38 YA-2TC 2-Hole Compression Lug, 4 AWG Stranded Copper Conductor, Die Code: 8/10, 3/8 in Stud, Tin Plated Copper
YA6C-2TC38BURNDY® HYLUG™ YA4C2TC38 YA-2TC 2-Hole Compression Lug, 4 AWG Stranded Copper Conductor, Die Code: 8/10, 3/8 in Stud, Tin Plated Copper

Documents

Short Description

BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Features

  • For mechanical: MD6, OUR840, MD7-34R tool, (2) W3CRT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W3CRT die, Y35, Y39, Y750, PAT750 tool, (2) U3CRT die, Y46 tool, (2) U3CRT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V tool, (2) MY29-3, MY29-11, MRC840 tool, (4) Y1MRTC tool installation tool
  • Electro tin plated
  • 3 AWG stranded, 2 AWG solid conductor size
  • 1-5/16 in L Strip, 1 in Stud Hole Spacing

Specification

Material
Copper
Stud Size
3/8 in
Temperature Rating
90 deg C
Tongue Style
Straight/Standard
Type
2-Hole
Voltage Rating
600 VAC to 35 kV
Standard & Approvals
UL468A-468B Listed, CSA Certified and RoHS Compliant
Application
For code conductor
Barrel Style
Chamfered/Long
Color Code
White
Conductor Type
Copper
Overall Length
3.43 in
Die Code
9
Barrel Size
1-1/4 in L
Conductor Size
3 AWG
Tongue Size
0.58 in W x 0.08 in THK
Series
YA-2TC
