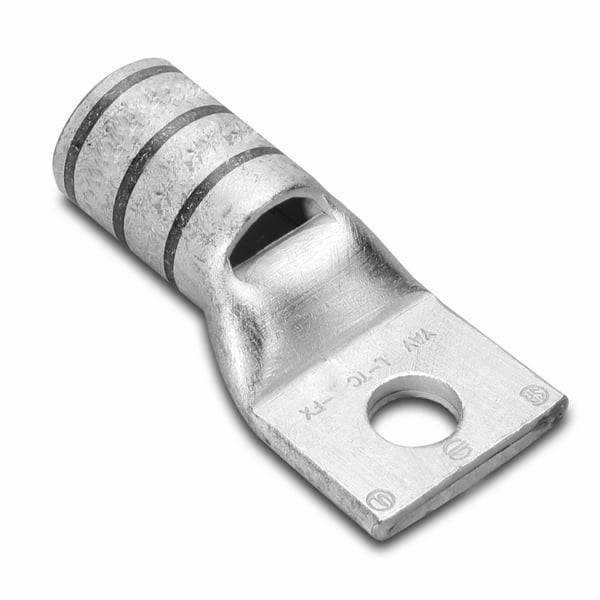

BURNDY® HYLUG™ YAV2CL2BOX YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Hole, 2 AWG Stranded Copper Conductor, Die Code: 41, 5/16 in Stud, Electro-Tin Plated Copper

Selected BURNDY® HYLUG™ YAV2CL2BOX YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Hole, 2 AWG Stranded Copper Conductor, Die Code: 41, 5/16 in Stud, Electro-Tin Plated Copper
BURNDY® HYLUG™ YAV2CL2BOX YAV-L 1-Hole Heavy Duty Uninsulated Compression Lug With Inspection Hole, 2 AWG Stranded Copper Conductor, Die Code: 41, 5/16 in Stud, Electro-Tin Plated Copper

Documents

Short Description

BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Features

  • Uninsulated compression terminal manufactured from electrolytic copper and is for use on type AN aircraft cable, extra flexible conductors and commercial (code) conductors
  • The seamless tubing produces a double thick tongue and seamless barrel design provides a strong connector for demanding applications requiring high reliability
  • Used for other equipment that is subject to vibration or requiring dependable electrical performance
  • The benefits of YAV-L connectors are the same as YAV connectors for stranded conductors
  • For HYTOOL™ MY28, MY29-11 non-ratchet, HYPRESS™ Y29B, Y29NC, DV2L die nest, Y29PL die indentor, (1) crimp, Y35, Y39, Y750, UV2L die nest, Y34PLA die indentor, (1) crimp installation tools
  • Box packaging
  • AN2 aircraft cable size, 2 AWG copper stranded/solid conductor size
  • Copper/Flex conductor
  • 2 AWG stranded conductor size
  • Pure electrolytic tin plated copper
  • 5/8 in L Strip, 1.37 in Hole Center to Barrel End, 0.35 in Hole Center to Barrel

Specification

Material
Copper
Overall Length
1.72 in
Series
YAV-L
Stud Size
5/16 in
Tongue Size
0.69 in W
Tongue Style
Straight/Ring
Type
1-Hole Heavy Duty Non-Insulated
Standard & Approvals
UL467 Military Specified Class 1, CSA Certified, SAE-AS7928 and ROHS Compliant
Conductor Size
2 AWG
Barrel Style
Short
Conductor Type
Copper
Die Code
41
